Defender Transparent (Linda Transparent)

3F Filippi

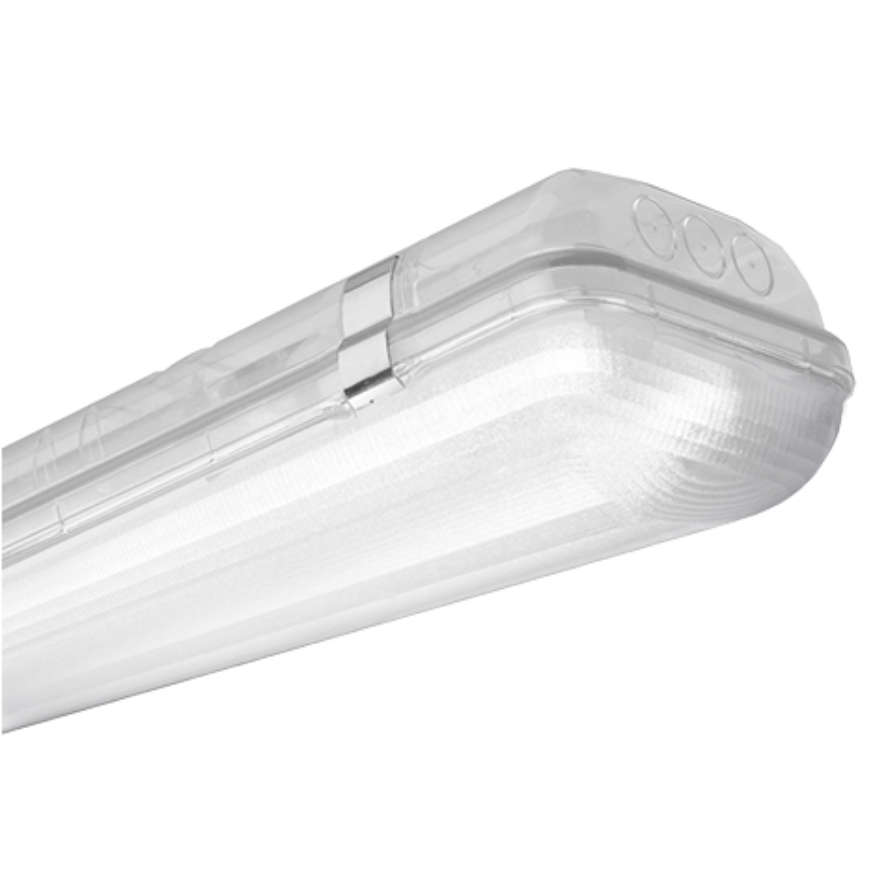

Mod 3F Linda Led Trasparente
An industrial underverandah with a transparent body offering additional indirect light

APPLICATION

  • Specifically suitable for illumination of public car parks

SIZES (L x W x H) AND WEIGHT

  • 660 x 100 x 100 mm 1.27 kg
  • 1270 x 100 x 100 mm 2.05 kg
  • 1270 x 160 x 100 mm 2.76 kg
  • 1570 x 100 x 100 mm 2.47 kg
  • 1570 x 160 x 100 mm 3.38 kg

MOUNTING

  • Ceiling, Suspended and Wall


LIGHT SOURCE LED OPTICAL SYSTEM

  • Linear LED modules
  • Colour rendering index CRI >80
  • CCT nominal colour temperature 4000K

WIRING

  • Electronic wiring 230V-50/60Hz

VARIATIONS

  • DALI dimmable
  • LED sources with different colour temperatures
  • Linear LED modules, with special protection against aggressive chemically-volatile substances, for standard LED technology

MATERIALS

  • Self extinguishing V2 polycarbonate

SERVICE LIFETIME (TA=25°C)

  • 50,000 hours / L85 / B10

AMBIENT OPERATING TEMPERATURE

  • From -25 °C to +30 °C


Specifications
  • Lumen Output: 1,909lm - 9,351lm
  • Lifetime: 50,000hrs L85 B10
  • Binning: 3 MacAdams
  • IP Rating: IP65
  • IK Rating: IK10
Our Products (5)
58806
Description 3F Defender Linda LED Transparent 1x12W L660
Wattage 13W
Lumen Output 1909lm
CCT 4000K
CRI 80
Service Lifetime 50,000 hours L85 B10
IP Rating IP65
UGR 22
Optic Polycarbonate diffuser
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Grey
Dimensions (LxWxH) 660mm x 100mm x 100mm
Weight 1.3kg
Mounting Surface, suspended, wall
Materials Self-extinguishing V2 polycarbonate housing and diffuser
Photometry Download
View all specs Hide all specs
58808
Description 3F Defender Linda LED Transparent 1x24W L1270
Wattage 25W
Lumen Output 3823lm
CCT 4000K
CRI 80
Service Lifetime 50,000 hours L85 B10
IP Rating IP65
UGR 22
Optic Polycarbonate diffuser
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Grey
Dimensions (LxWxH) 1270mm x 100mm x 100mm
Weight 2.1kg
Mounting Surface, suspended, wall
Materials Self-extinguishing V2 polycarbonate housing and diffuser
Photometry Download
View all specs Hide all specs
58809
Description 3F Defender Linda LED Transparent 2x24W L1270
Wattage 49W
Lumen Output 7473lm
CCT 4000K
CRI 80
Service Lifetime 50,000 hours L85 B10
IP Rating IP65
UGR 22
Optic Polycarbonate diffuser
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Grey
Dimensions (LxWxH) 1270mm x 160mm x 100mm
Weight 2.8kg
Mounting Surface, suspended, wall
Materials Self-extinguishing V2 polycarbonate housing and diffuser
Photometry Download
View all specs Hide all specs
58810
Description 3F Defender Linda LED Transparent 1x30W L1570
Wattage 31W
Lumen Output 4783lm
CCT 4000K
CRI 80
Service Lifetime 50,000 hours L85 B10
IP Rating IP65
UGR 22
Optic Polycarbonate diffuser
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Grey
Dimensions (LxWxH) 1570mm x 100mm x 100mm
Weight 2.5kg
Mounting Surface, suspended, wall
Materials Self-extinguishing V2 polycarbonate housing and diffuser
Photometry Download
View all specs Hide all specs
58811
Description 3F Defender Linda LED Transparent 2x30W L1570
Wattage 62W
Lumen Output 9351lm
CCT 4000K
CRI 80
Service Lifetime 50,000 hours L85 B10
IP Rating IP65
UGR 22
Optic Polycarbonate diffuser
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Grey
Dimensions (LxWxH) 1570mm x 160mm x 100mm
Weight 3.3kg
Mounting Surface, suspended, wall
Materials Self-extinguishing V2 polycarbonate housing and diffuser
Photometry Download
View all specs Hide all specs
Product Code Description Wattage Lumen Output CCT CRI Service Lifetime IP Rating UGR Optic Driver/Dimming/Controls Power Factor Connection Body colour/Options Dimensions (LxWxH) Weight Mounting Materials Photometry Product Kit
58806 3F Defender Linda LED Transparent 1x12W L660 13W 1909lm 4000K 80 50,000 hours L85 B10 IP65 22 Polycarbonate diffuser Electronic fixed output 0.95 Direct Grey 660mm x 100mm x 100mm 1.3kg Surface, suspended, wall Self-extinguishing V2 polycarbonate housing and diffuser View Kit
58808 3F Defender Linda LED Transparent 1x24W L1270 25W 3823lm 4000K 80 50,000 hours L85 B10 IP65 22 Polycarbonate diffuser Electronic fixed output 0.95 Direct Grey 1270mm x 100mm x 100mm 2.1kg Surface, suspended, wall Self-extinguishing V2 polycarbonate housing and diffuser View Kit
58809 3F Defender Linda LED Transparent 2x24W L1270 49W 7473lm 4000K 80 50,000 hours L85 B10 IP65 22 Polycarbonate diffuser Electronic fixed output 0.95 Direct Grey 1270mm x 160mm x 100mm 2.8kg Surface, suspended, wall Self-extinguishing V2 polycarbonate housing and diffuser View Kit
58810 3F Defender Linda LED Transparent 1x30W L1570 31W 4783lm 4000K 80 50,000 hours L85 B10 IP65 22 Polycarbonate diffuser Electronic fixed output 0.95 Direct Grey 1570mm x 100mm x 100mm 2.5kg Surface, suspended, wall Self-extinguishing V2 polycarbonate housing and diffuser View Kit
58811 3F Defender Linda LED Transparent 2x30W L1570 62W 9351lm 4000K 80 50,000 hours L85 B10 IP65 22 Polycarbonate diffuser Electronic fixed output 0.95 Direct Grey 1570mm x 160mm x 100mm 3.3kg Surface, suspended, wall Self-extinguishing V2 polycarbonate housing and diffuser View Kit
Accessories
Order Code Description
A0160
Inox clips 3F Linda L660-4pcs
A0161
Inox clips 3F Linda L1270-8pcs
A0162
Inox clips 3F LindaL1570-10pcs
A0449
15 GZI w/brack. LindaL300-2pcs
A0450
15 RIT w/brack.+ hooks Linda L660-1270-1570-2pcs
A0451
15 MBI (w/brack. Linda L300)-2pcs
A0452
15 FBR (w/brack.+ hooks Linda L660-1270-1570)-2pcs
A0462
13 GSI (pair of susp. hooks Linda L300)
A0463
13 TRM (pair of susp. hooks Linda L660-1270-15700-2pcs
A0160
Description Inox clips 3F Linda L660-4pcs
A0161
Description Inox clips 3F Linda L1270-8pcs
A0162
Description Inox clips 3F LindaL1570-10pcs
A0449
Description 15 GZI w/brack. LindaL300-2pcs
A0450
Description 15 RIT w/brack.+ hooks Linda L660-1270-1570-2pcs
A0451
Description 15 MBI (w/brack. Linda L300)-2pcs
A0452
Description 15 FBR (w/brack.+ hooks Linda L660-1270-1570)-2pcs
A0462
Description 13 GSI (pair of susp. hooks Linda L300)
A0463
Description 13 TRM (pair of susp. hooks Linda L660-1270-15700-2pcs
