Defender ICE (Linda ICE)

3F Filippi

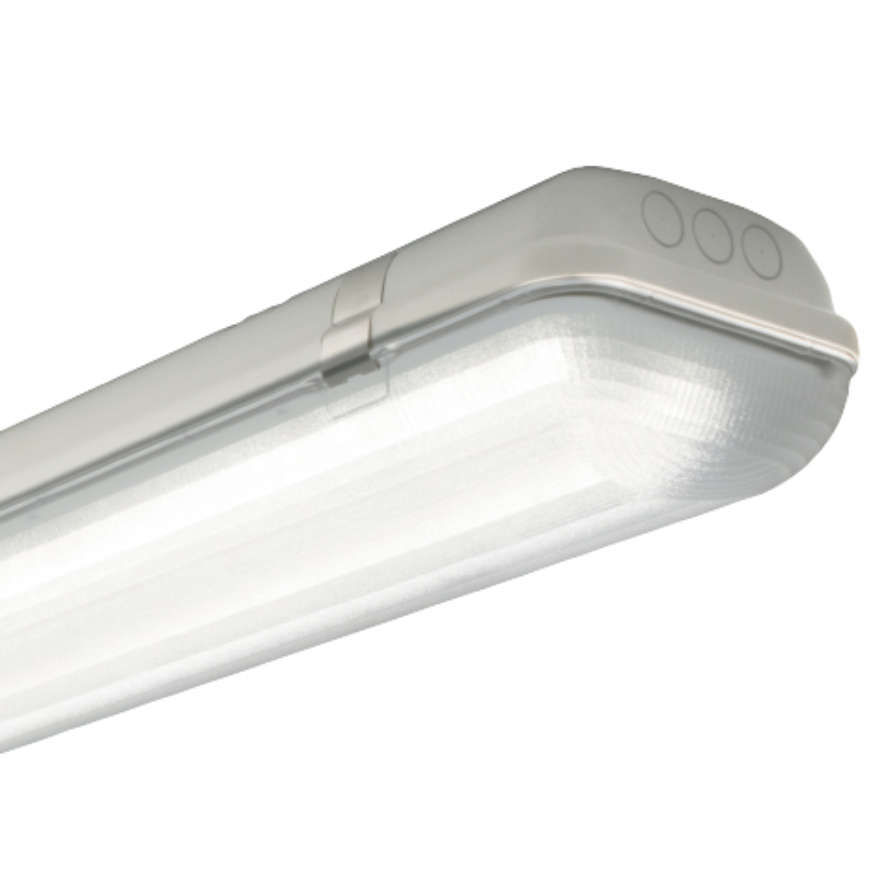

Mod 3F Linda Led Ice 2X

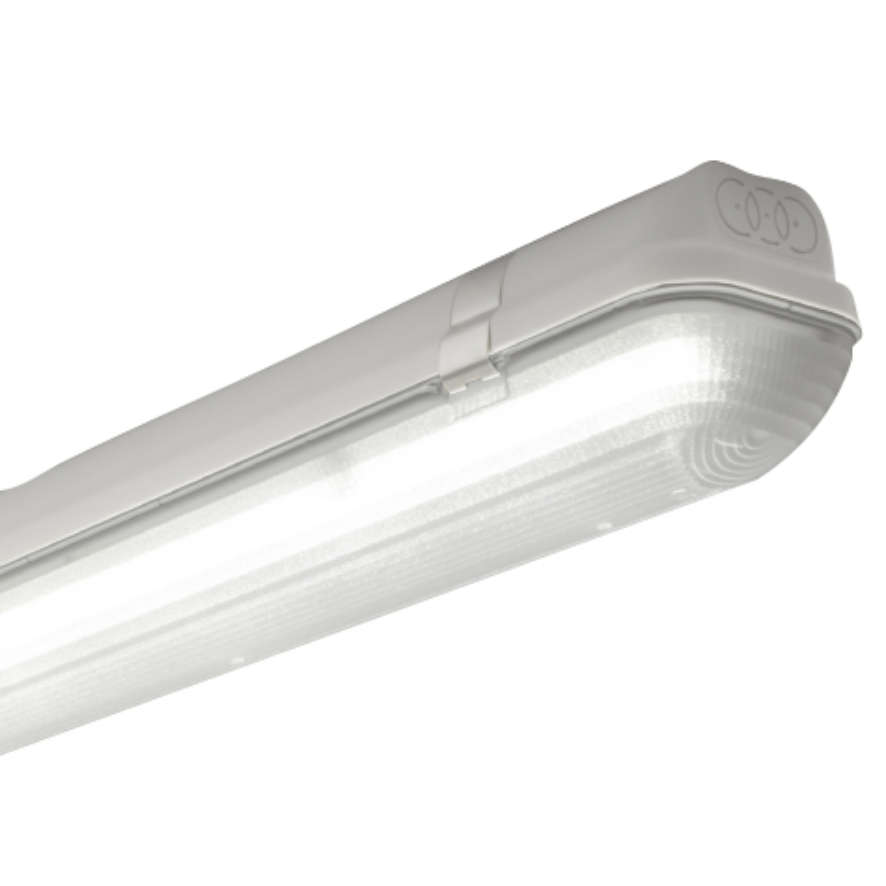

Mod 3F Linda Led Ice 1X
An industrial underverandah offering exceptional performance, strength, and for environments down to -30C
Downloads
Download all
Contractor product files (4)
Download ZIP - 3.54 MB
Specifier product files (16)
Download ZIP - 4.22 MB

APPLICATION

  • 3F Linda LED Ice luminaires can be installed in environments with humidity rate up to 95%
  • Suitable for diffuse direct/indirect lighting in car parks, stairwells, storage rooms, cold rooms and freezers

SIZES (L x W x H) AND WEIGHT

  • 1270 x 100 x 100 mm 2.2 kg
  • 1270 x 160 x 100 mm 3.0 kg
  • 1570 x 100 x 100 mm 2.7 kg
  • 1570 x 160 x 100 mm 3.3 kg

MOUNTING

  • Ceiling , Suspended and Wall


LIGHT SOURCE LED OPTICAL SYSTEM

  • Linear LED module
  • Colour rendering index CRI >80
  • CCT nominal colour temperature 4000 K, other colour temperatures available

WIRING

  • Electronic wiring 230V-50/60Hz

VARIATIONS

  • LED sources with different colour temperatures
  • Linear LED modules, with special protection against aggressive chemically-volatile substances, for standard LED technology

MATERIALS

  • Self extinguishing V2 polycarbonate

SERVICE LIFETIME (TA=25°C)

  • 50,000 hours / L85 / B10

AMBIENT OPERATING TEMPERATURE

  • From -30°C to +40 °C


Read more
Specifications
  • Lumen Output: 3,802lm - 9,259lm
  • Lifetime: 50,000hrs L85 B10
  • Binning: 3 MacAdams
  • IP Rating: IP65
  • IK Rating: IK10
Applications
Brand Website
Make an enquiry
Our Products (4)
58457
Description 3F Defender Linda LED Ice 1x24W UR95 L1270
Wattage 25W
Lumen Output 3802lm
CCT 4000K
CRI 80
Service Lifetime 50,000 hours L80 B10
IP Rating IP65
UGR 22
Optic Polycarbonate diffuser
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Grey Body
Dimensions (LxWxH) 1270mm x 100mm x 100mm
Weight 2.2kg
Mounting Surface, suspended, wall
Materials Self-extinguishing V2 polycarbonate housing and diffuser
Photometry Download
View all specs Hide all specs
58459
Description 3F Defender Linda LED Ice 2x24W UR95 L1270
Wattage 49W
Lumen Output 7399lm
CCT 4000K
CRI 80
Service Lifetime 50,000 hours L85 B10
IP Rating IP65
UGR 22
Optic Polycarbonate diffuser
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Grey Body
Dimensions (LxWxH) 1270mm x 160mm x 100mm
Weight 3.0kg
Mounting Surface, suspended, wall
Materials Self-extinguishing V2 polycarbonate housing and diffuser
Photometry Download
View all specs Hide all specs
58461
Description 3F Defender Linda LED Ice 1x30W UR95 L1570
Wattage 31W
Lumen Output 4758lm
CCT 4000K
CRI 80
Service Lifetime 50,000 hours L85 B10
IP Rating IP65
UGR 22
Optic Polycarbonate diffuser
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Grey Body
Dimensions (LxWxH) 1570mm x 100mm x 100mm
Weight 2.7kg
Mounting Surface, suspended, wall
Materials Self-extinguishing V2 polycarbonate housing and diffuser
Photometry Download
View all specs Hide all specs
58463
Description 3F Defender Linda LED Ice 2x30W UR95 L157
Wattage 62W
Lumen Output 9259lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L80 B10
IP Rating IP65
UGR 22
Optic Polycarbonate diffuser
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Grey Body
Dimensions (LxWxH) 1570mm x 160mm x 100mm
Weight 3.3kg
Mounting Surface, suspended, wall
Materials Self-extinguishing V2 polycarbonate housing and diffuser
Photometry Download
View all specs Hide all specs
Product Code Description Wattage Lumen Output CCT CRI Service Lifetime IP Rating UGR Optic Driver/Dimming/Controls Power Factor Connection Body colour/Options Dimensions (LxWxH) Weight Mounting Materials Photometry Product Kit
58457 3F Defender Linda LED Ice 1x24W UR95 L1270 25W 3802lm 4000K 80 50,000 hours L80 B10 IP65 22 Polycarbonate diffuser Electronic fixed output 0.95 Direct Grey Body 1270mm x 100mm x 100mm 2.2kg Surface, suspended, wall Self-extinguishing V2 polycarbonate housing and diffuser View Kit
58459 3F Defender Linda LED Ice 2x24W UR95 L1270 49W 7399lm 4000K 80 50,000 hours L85 B10 IP65 22 Polycarbonate diffuser Electronic fixed output 0.95 Direct Grey Body 1270mm x 160mm x 100mm 3.0kg Surface, suspended, wall Self-extinguishing V2 polycarbonate housing and diffuser View Kit
58461 3F Defender Linda LED Ice 1x30W UR95 L1570 31W 4758lm 4000K 80 50,000 hours L85 B10 IP65 22 Polycarbonate diffuser Electronic fixed output 0.95 Direct Grey Body 1570mm x 100mm x 100mm 2.7kg Surface, suspended, wall Self-extinguishing V2 polycarbonate housing and diffuser View Kit
58463 3F Defender Linda LED Ice 2x30W UR95 L157 62W 9259lm 4000K 80 80,000 hours L80 B10 IP65 22 Polycarbonate diffuser Electronic fixed output 0.95 Direct Grey Body 1570mm x 160mm x 100mm 3.3kg Surface, suspended, wall Self-extinguishing V2 polycarbonate housing and diffuser View Kit
Show all products
Accessories
Order Code Description
A0160
 Inox clips 3F Linda L660-4pcs
A0161
 Inox clips 3F Linda L1270-8pcs
A0162
 Inox clips 3F LindaL1570-10pcs
A0449
 15 GZI w/brack. LindaL300-2pcs
A0450
 15 RIT w/brack.+ hooks Linda L660-1270-1570-2pcs
A0451
 15 MBI (w/brack. Linda L300)-2pcs
A0452
 15 FBR (w/brack.+ hooks Linda L660-1270-1570)-2pcs
A0462
 13 GSI (pair of susp. hooks Linda L300)
A0463
 13 TRM (pair of susp. hooks Linda L660-1270-15700-2pcs
A0160
Description Inox clips 3F Linda L660-4pcs
A0161
Description Inox clips 3F Linda L1270-8pcs
A0162
Description Inox clips 3F LindaL1570-10pcs
A0449
Description 15 GZI w/brack. LindaL300-2pcs
A0450
Description 15 RIT w/brack.+ hooks Linda L660-1270-1570-2pcs
A0451
Description 15 MBI (w/brack. Linda L300)-2pcs
A0452
Description 15 FBR (w/brack.+ hooks Linda L660-1270-1570)-2pcs
A0462
Description 13 GSI (pair of susp. hooks Linda L300)
A0463
Description 13 TRM (pair of susp. hooks Linda L660-1270-15700-2pcs
