Defender Hardskin (Linda HS)

3F Filippi

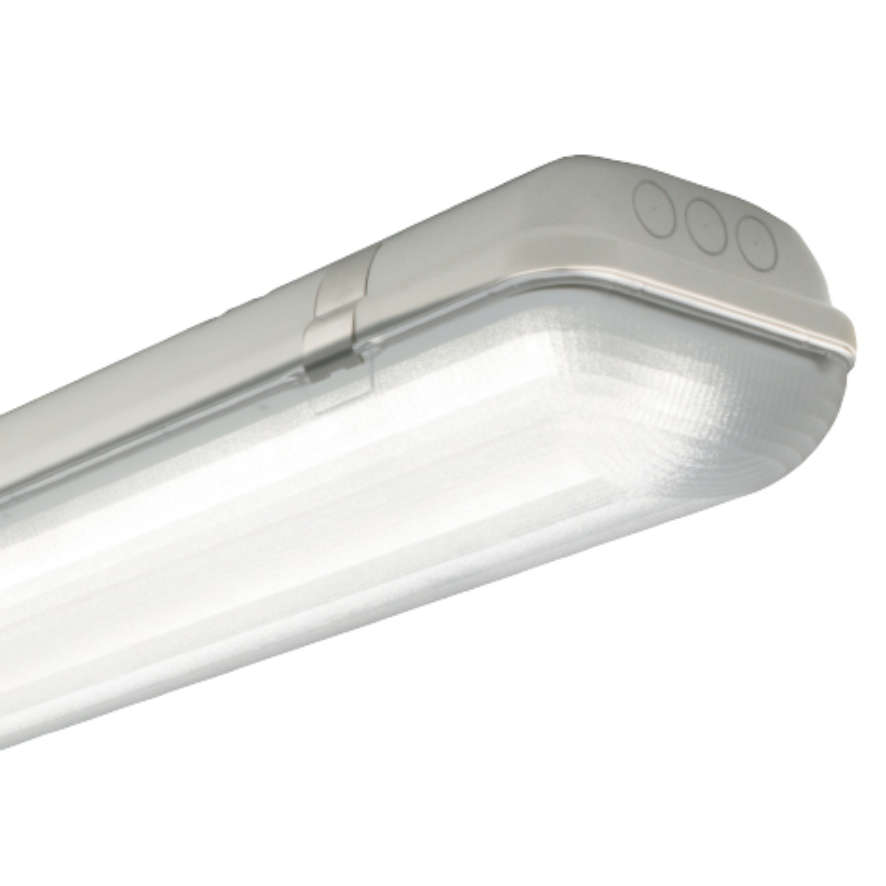

Mod 3F Linda Led Hs
An industrial underverandah offering exceptional performance, strength and resistance to volatile chemicals
Downloads
Download all
Contractor product files (5)
Download ZIP - 3.56 MB
Specifier product files (19)
Download ZIP - 5.44 MB

APPLICATION

  • Suitable for diffuse direct/indirect lighting in car parks, stairwells, storage rooms & switchboard rooms
  • Product suitable for installation in food-production/processing environments (HACCP, IFS, BRC Standard)

SIZES (L x W x H) AND WEIGHT

  • 1270 x 100 x 100 mm 2.05 kg
  • 1270 x 160 x 100 mm 2.76 kg
  • 1570 x 100 x 100 mm 2.47 kg
  • 1570 x 160 x 100 mm 3.38 kg

MOUNTING

  • Ceiling, Suspended and Wall

LIGHT SOURCE LED OPTICAL SYSTEM

  • Linear LED modules, with special protection against aggressive chemically-volatile substances, for standard LED technology
  • Colour rendering index CRI >80
  • CCT nominal colour temperature 4000 K, other colour temperatures available

WIRING

  • Electronic wiring 230V-50/60Hz

VARIATIONS

  • DALI dimmable
  • LED sources with different colour temperatures
  • Emergency maintained for selected sizes

MATERIALS

  • Self extinguishing V2 polycarbonate with special protective coating

SERVICE LIFETIME (TA=25°C

  • 50,000 hours / L85 / B10

AMBIENT OPERATING TEMPERATURE

  • From -20 °C to +35 °C


Read more
Specifications
  • Lumen Output: 3,802lm - 9,259lm
  • Lifetime: 50,000hrs L85 B10
  • Binning: 3 MacAdams
  • IP Rating: IP65
  • IK Rating: IK10
Applications
Brand Website
Make an enquiry
Our Products (5)
58594HS
Description 3F Defender Linda LED Hardskin 2x24W L1270
Wattage 49W
Lumen Output 7399lm
CCT 4000K
CRI 80
Service Lifetime 50,000 hours L85 B10
IP Rating IP65
UGR 22
Optic Polycarbonate diffuser
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Grey
Dimensions (LxWxH) 1270mm x 160mm x 100mm
Weight 2.8kg
Mounting Surface, suspended, wall
Materials Self-extinguishing V2 polycarbonate housing and diffuser
Photometry Download
View all specs Hide all specs
58605HS
Description 3F Defender Linda LED Hardskin 1x30W L1570
Wattage 31W
Lumen Output 4758lm
CCT 4000K
CRI 80
Service Lifetime 50,000 hours L85 B10
IP Rating IP65
UGR 22
Optic Polycarbonate diffuser
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Grey
Dimensions (LxWxH) 1570mm x 100mm x 100mm
Weight 2.5kg
Mounting Surface, suspended, wall
Materials Self-extinguishing V2 polycarbonate housing and diffuser
Photometry Download
View all specs Hide all specs
58616HS
Description 3F Defender Linda LED Hardskin 2x30W L1570
Wattage 62W
Lumen Output 9259lm
CCT 4000K
CRI 80
Service Lifetime 50,000 hours L85 B10
IP Rating IP65
UGR 22
Optic Polycarbonate diffuser
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Grey
Dimensions (LxWxH) 1570mm x 160mm x 100mm
Weight 3.3kg
Mounting Surface, suspended, wall
Materials Self-extinguishing V2 polycarbonate housing and diffuser
Photometry Download
View all specs Hide all specs
58722HS
Description 3F Defender Linda LED Hardskin 1x24W L1270
Wattage 25W
Lumen Output 3802lm
CCT 4000K
CRI 80
Service Lifetime 50,000 hours L85 B10
IP Rating IP65
UGR 22
Optic Polycarbonate diffuser
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Grey
Dimensions (LxWxH) 1270mm x 100mm x 100mm
Weight 2.1kg
Mounting Surface, suspended, wall
Materials Self-extinguishing V2 polycarbonate housing and diffuser
Photometry Download
View all specs Hide all specs
58724
Description 3F Defender Linda LED Hardskin  1X30W L1570
Wattage 30W
Lumen Output 4758lm
CCT 4000K
CRI 80
Service Lifetime 50,000 hours L85 B10
IP Rating IP65
UGR 22
Optic Polycarbonate diffuser
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Grey
Dimensions (LxWxH) 1570mm x 100mm x 100mm
Weight 2.5kg
Mounting Surface, suspended, wall
Materials Self-extinguishing V2 polycarbonate housing and diffuser
Photometry Download
View all specs Hide all specs
Product Code Description Wattage Lumen Output CCT CRI Service Lifetime IP Rating UGR Optic Driver/Dimming/Controls Power Factor Connection Body colour/Options Dimensions (LxWxH) Weight Mounting Materials Photometry Product Kit
58594HS 3F Defender Linda LED Hardskin 2x24W L1270 49W 7399lm 4000K 80 50,000 hours L85 B10 IP65 22 Polycarbonate diffuser Electronic fixed output 0.95 Direct Grey 1270mm x 160mm x 100mm 2.8kg Surface, suspended, wall Self-extinguishing V2 polycarbonate housing and diffuser View Kit
58605HS 3F Defender Linda LED Hardskin 1x30W L1570 31W 4758lm 4000K 80 50,000 hours L85 B10 IP65 22 Polycarbonate diffuser Electronic fixed output 0.95 Direct Grey 1570mm x 100mm x 100mm 2.5kg Surface, suspended, wall Self-extinguishing V2 polycarbonate housing and diffuser View Kit
58616HS 3F Defender Linda LED Hardskin 2x30W L1570 62W 9259lm 4000K 80 50,000 hours L85 B10 IP65 22 Polycarbonate diffuser Electronic fixed output 0.95 Direct Grey 1570mm x 160mm x 100mm 3.3kg Surface, suspended, wall Self-extinguishing V2 polycarbonate housing and diffuser View Kit
58722HS 3F Defender Linda LED Hardskin 1x24W L1270 25W 3802lm 4000K 80 50,000 hours L85 B10 IP65 22 Polycarbonate diffuser Electronic fixed output 0.95 Direct Grey 1270mm x 100mm x 100mm 2.1kg Surface, suspended, wall Self-extinguishing V2 polycarbonate housing and diffuser View Kit
58724 3F Defender Linda LED Hardskin  1X30W L1570 30W 4758lm 4000K 80 50,000 hours L85 B10 IP65 22 Polycarbonate diffuser Electronic fixed output 0.95 Direct Grey 1570mm x 100mm x 100mm 2.5kg Surface, suspended, wall Self-extinguishing V2 polycarbonate housing and diffuser View Kit
Show all products
Accessories
Order Code Description
A0160
 Inox clips 3F Linda L660-4pcs
A0161
 Inox clips 3F Linda L1270-8pcs
A0162
 Inox clips 3F LindaL1570-10pcs
A0449
 15 GZI w/brack. LindaL300-2pcs
A0450
 15 RIT w/brack.+ hooks Linda L660-1270-1570-2pcs
A0451
 15 MBI (w/brack. Linda L300)-2pcs
A0452
 15 FBR (w/brack.+ hooks Linda L660-1270-1570)-2pcs
A0462
 13 GSI (pair of susp. hooks Linda L300)
A0463
 13 TRM (pair of susp. hooks Linda L660-1270-15700-2pcs
A0160
Description Inox clips 3F Linda L660-4pcs
A0161
Description Inox clips 3F Linda L1270-8pcs
A0162
Description Inox clips 3F LindaL1570-10pcs
A0449
Description 15 GZI w/brack. LindaL300-2pcs
A0450
Description 15 RIT w/brack.+ hooks Linda L660-1270-1570-2pcs
A0451
Description 15 MBI (w/brack. Linda L300)-2pcs
A0452
Description 15 FBR (w/brack.+ hooks Linda L660-1270-1570)-2pcs
A0462
Description 13 GSI (pair of susp. hooks Linda L300)
A0463
Description 13 TRM (pair of susp. hooks Linda L660-1270-15700-2pcs
