3F Linda LED Soft

3F Filippi

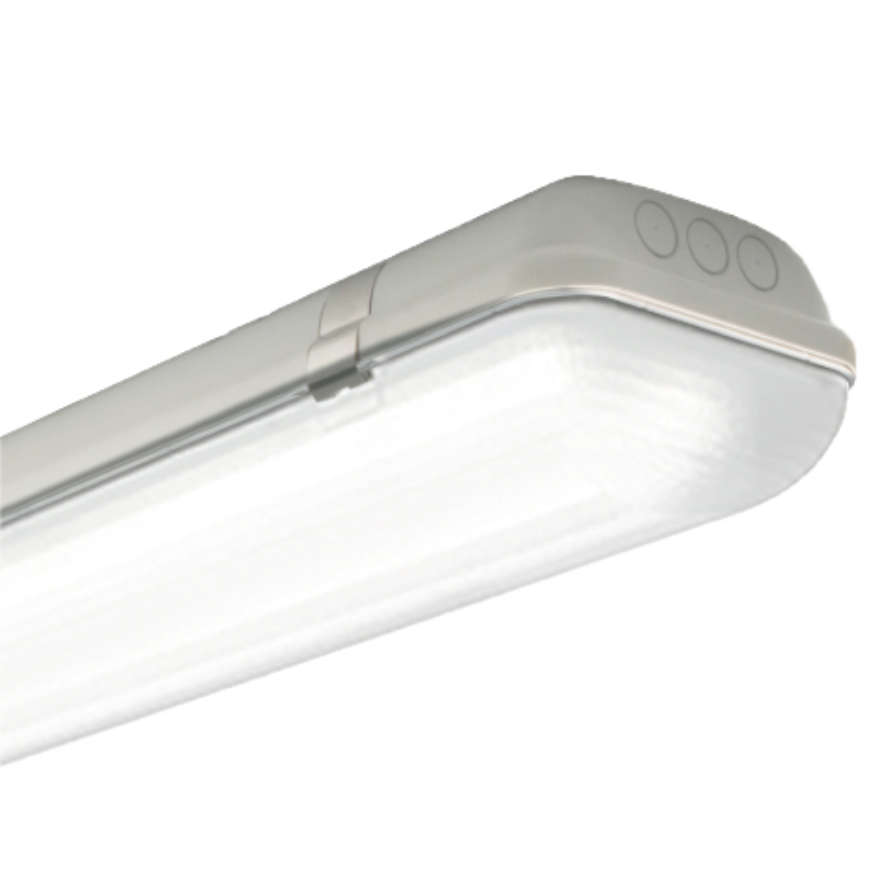

MOD 3 F Linda LED Soft
The Linda LED soft is an industrial underverandah offering exceptional performance, strength and soft diffuse light for visual comfort
Downloads
Download all
Contractor product files (1)
Download ZIP - 1.02 MB
Specifier product files (28)
Download ZIP - 2.03 MB

APPLICATION

  • Designed for dry, dusty indoor environments, subject to occasional water splashes.

SIZES (L x W x H) AND WEIGHT

  • 660 x 100 x 100 mm 1.3 kg
  • 1270 x 100 x 100 mm 2.1 kg
  • 1570 x 160 x 100 mm 2.5 kg
  • 1570 x 100 x 100 mm 2.4 Kg

MOUNTING

  • Ceiling, Suspended and Wall


LIGHT SOURCE LED OPTICAL SYSTEM

  • Linear LED modules
  • Colour rendering index CRI >80
  • CCT nominal colour temperature 4000K, other colour temperatures available

WIRING

  • Electronic wiring 230V-50/60Hz

VARIATIONS

  • DALI dimmable
  • LED sources with different colour temperatures
  • Linear LED modules, with special protection against aggressive chemically-volatile substances, for standard LED technology

MATERIALS

  • Self extinguishing V2 polycarbonate

SERVICE LIFETIME (TA=25°C)

  • 50,000 hours / L85 / B10

AMBIENT OPERATING TEMPERATURE

  • From -20 °C to +35 °C
Read more
Specifications
  • Lumen Output: 1,760lm - 8,623lm
  • Lifetime: 50,000hrs L85 B10
  • Binning: 3 MacAdams
  • IP Rating: IP65
  • IK Rating: IK10
Applications
Brand Website
Make an enquiry
Our Products (9)
58731
Description 3F Linda LED Soft 1x12W L660
Wattage 12W
Lumen Output 1760lm
CCT 4000K
CRI 80
Service Lifetime 50,000 hours L85 B10
IP Rating IP65
UGR 22
Optic Polycarbonate opal diffuser
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options White
Dimensions (LxWxH) 660mm x 100mm x 100mm
Weight 1.4kg
Mounting Surface, suspended, wall
Materials Self-extinguishing V2 polycarbonate housing and diffuser
Photometry Download
View all specs Hide all specs
58732
Description 3F Linda LED Soft 2x12W L660
Wattage 24W
Lumen Output 3376lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L80 B10
IP Rating IP65
UGR 22
Optic Polycarbonate opal diffuser
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options White
Dimensions (LxWxH) 660mm x 160mm x 100mm
Weight 1.8kg
Mounting Surface, suspended, wall
Materials Self-extinguishing V2 polycarbonate housing and diffuser
Photometry Download
View all specs Hide all specs
58733
Description 3F Linda LED Soft 1x24W L1270
Wattage 28W
Lumen Output 3593lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L80 B10
IP Rating IP65
UGR 22
Optic Polycarbonate opal diffuser
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options White
Dimensions (LxWxH) 1270mm x 100mm x 100mm
Mounting Surface, suspended, wall
Materials Self-extinguishing V2 polycarbonate housing and diffuser
Photometry Download
View all specs Hide all specs
58734
Description 3F Linda LED Soft 1x30W L1570
Wattage 35W
Lumen Output 4497lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L80 B10
IP Rating IP65
UGR 22
Optic Polycarbonate opal diffuser
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options White
Dimensions (LxWxH) 1570mm x 100mm x 100mm
Mounting Surface, suspended, wall
Materials Self-extinguishing V2 polycarbonate housing and diffuser
Photometry Download
View all specs Hide all specs
58737
Description 3F Linda LED Soft 2x24W L1270
Wattage 56W
Lumen Output 6890lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L80 B10
IP Rating IP65
UGR 22
Optic Polycarbonate opal diffuser
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options White
Dimensions (LxWxH) 1270mm x 160mm x 100mm
Mounting Surface, suspended, wall
Materials Self-extinguishing V2 polycarbonate housing and diffuser
Photometry Download
View all specs Hide all specs
58745
Description 3F Defender  Linda LED Opal 1x24W L1270
Wattage 25W
Lumen Output 3314lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L80 B10
IP Rating IP65
UGR 22
Optic Polycarbonate opal diffuser
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options White
Dimensions (LxWxH) 1270mm x 100mm x 100mm
Weight 2.1kg
Mounting Surface, suspended, wall
Materials Self-extinguishing V2 polycarbonate housing and diffuser
Photometry Download
View all specs Hide all specs
58748
Description 3F Defender Linda LED Opal 1x30W L1570
Wattage 31W
Lumen Output 4146lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L80 B10
IP Rating IP65
UGR 22
Optic Polycarbonate opal diffuser
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options White
Dimensions (LxWxH) 1570mm x 100mm x 100mm
Weight 2.5kg
Mounting Surface, suspended, wall
Materials Self-extinguishing V2 polycarbonate housing and diffuser
Photometry Download
View all specs Hide all specs
58751
Description 3F Linda LED Soft 2x22W L1570
Wattage 50W
Lumen Output 6838lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L80 B10
IP Rating IP65
UGR 22
Optic Polycarbonate opal diffuser
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options White
Dimensions (LxWxH) 1570mm x 160mm x 100mm
Mounting Surface, suspended, wall
Materials Self-extinguishing V2 polycarbonate housing and diffuser
Photometry Download
View all specs Hide all specs
58752
Description 3F Linda LED Soft 2x30W L1570
Wattage 70W
Lumen Output 8623lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L80 B10
IP Rating IP65
UGR 22
Optic Polycarbonate opal diffuser
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options White
Dimensions (LxWxH) 1570mm x 160mm x 100mm
Mounting Surface, suspended, wall
Materials Self-extinguishing V2 polycarbonate housing and diffuser
Photometry Download
View all specs Hide all specs
Product Code Description Wattage Lumen Output CCT CRI Service Lifetime IP Rating UGR Optic Driver/Dimming/Controls Power Factor Connection Body colour/Options Dimensions (LxWxH) Weight Mounting Materials Photometry Product Kit
58731 3F Linda LED Soft 1x12W L660 12W 1760lm 4000K 80 50,000 hours L85 B10 IP65 22 Polycarbonate opal diffuser Electronic fixed output 0.95 Direct White 660mm x 100mm x 100mm 1.4kg Surface, suspended, wall Self-extinguishing V2 polycarbonate housing and diffuser View Kit
58732 3F Linda LED Soft 2x12W L660 24W 3376lm 4000K 80 80,000 hours L80 B10 IP65 22 Polycarbonate opal diffuser Electronic fixed output 0.95 Direct White 660mm x 160mm x 100mm 1.8kg Surface, suspended, wall Self-extinguishing V2 polycarbonate housing and diffuser View Kit
58733 3F Linda LED Soft 1x24W L1270 28W 3593lm 4000K 80 80,000 hours L80 B10 IP65 22 Polycarbonate opal diffuser Electronic fixed output 0.95 Direct White 1270mm x 100mm x 100mm - Surface, suspended, wall Self-extinguishing V2 polycarbonate housing and diffuser View Kit
58734 3F Linda LED Soft 1x30W L1570 35W 4497lm 4000K 80 80,000 hours L80 B10 IP65 22 Polycarbonate opal diffuser Electronic fixed output 0.95 Direct White 1570mm x 100mm x 100mm - Surface, suspended, wall Self-extinguishing V2 polycarbonate housing and diffuser View Kit
58737 3F Linda LED Soft 2x24W L1270 56W 6890lm 4000K 80 80,000 hours L80 B10 IP65 22 Polycarbonate opal diffuser Electronic fixed output 0.95 Direct White 1270mm x 160mm x 100mm - Surface, suspended, wall Self-extinguishing V2 polycarbonate housing and diffuser View Kit
58745 3F Defender  Linda LED Opal 1x24W L1270 25W 3314lm 4000K 80 80,000 hours L80 B10 IP65 22 Polycarbonate opal diffuser Electronic fixed output 0.95 Direct White 1270mm x 100mm x 100mm 2.1kg Surface, suspended, wall Self-extinguishing V2 polycarbonate housing and diffuser View Kit
58748 3F Defender Linda LED Opal 1x30W L1570 31W 4146lm 4000K 80 80,000 hours L80 B10 IP65 22 Polycarbonate opal diffuser Electronic fixed output 0.95 Direct White 1570mm x 100mm x 100mm 2.5kg Surface, suspended, wall Self-extinguishing V2 polycarbonate housing and diffuser View Kit
58751 3F Linda LED Soft 2x22W L1570 50W 6838lm 4000K 80 80,000 hours L80 B10 IP65 22 Polycarbonate opal diffuser Electronic fixed output 0.95 Direct White 1570mm x 160mm x 100mm - Surface, suspended, wall Self-extinguishing V2 polycarbonate housing and diffuser View Kit
58752 3F Linda LED Soft 2x30W L1570 70W 8623lm 4000K 80 80,000 hours L80 B10 IP65 22 Polycarbonate opal diffuser Electronic fixed output 0.95 Direct White 1570mm x 160mm x 100mm - Surface, suspended, wall Self-extinguishing V2 polycarbonate housing and diffuser View Kit
Show all products
Accessories
Order Code Description
A0160
 Inox clips 3F Linda L660-4pcs
A0161
 Inox clips 3F Linda L1270-8pcs
A0162
 Inox clips 3F LindaL1570-10pcs
A0449
 15 GZI w/brack. LindaL300-2pcs
A0450
 15 RIT w/brack.+ hooks Linda L660-1270-1570-2pcs
A0451
 15 MBI (w/brack. Linda L300)-2pcs
A0452
 15 FBR (w/brack.+ hooks Linda L660-1270-1570)-2pcs
A0462
 13 GSI (pair of susp. hooks Linda L300)
A0463
 13 TRM (pair of susp. hooks Linda L660-1270-15700-2pcs
A0160
Description Inox clips 3F Linda L660-4pcs
A0161
Description Inox clips 3F Linda L1270-8pcs
A0162
Description Inox clips 3F LindaL1570-10pcs
A0449
Description 15 GZI w/brack. LindaL300-2pcs
A0450
Description 15 RIT w/brack.+ hooks Linda L660-1270-1570-2pcs
A0451
Description 15 MBI (w/brack. Linda L300)-2pcs
A0452
Description 15 FBR (w/brack.+ hooks Linda L660-1270-1570)-2pcs
A0462
Description 13 GSI (pair of susp. hooks Linda L300)
A0463
Description 13 TRM (pair of susp. hooks Linda L660-1270-15700-2pcs
