RX Hepa LED

RX Lighting

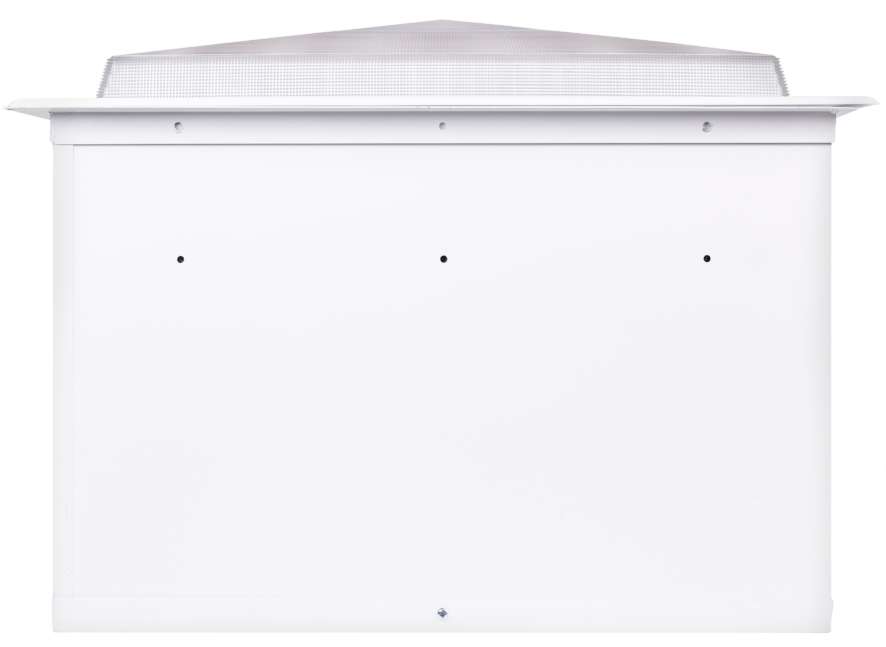

Hepa-Side

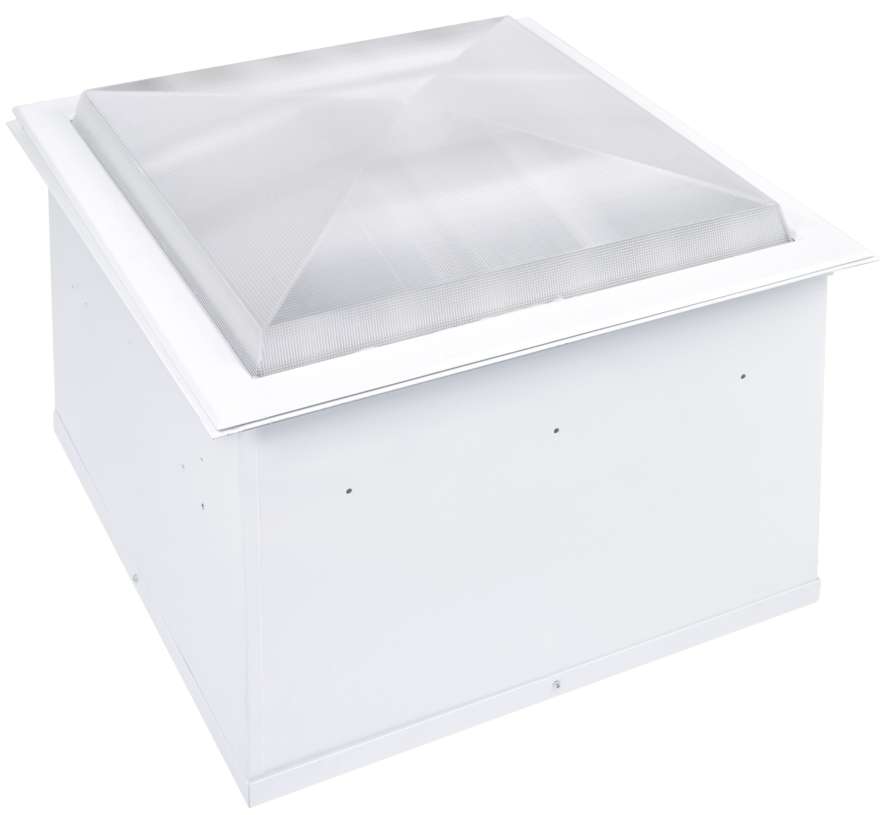

Hepa-3D
The HEPA is suitable for Hygiene areas using polypanel construction such as freezing works,dairy factory, bakeries and general food areas
Download all
Contractor product files (2)
Download ZIP - 1.27 MB
Specifier product files (6)
Download ZIP - 3.65 MB

APPLICATION

  • Hygene Areas specifically Dairy, Meat & Food Preparation areas

SIZES ( W & H )

  • 595 mm x 595 mm - Cutout : 600 mm x 600 mm

MOUNTING

  • Recessed

WIRING

  • 168W
  • Non-Dimmable
  • Zhaga Footprint LED engine
  • Remote control gear
  • 230 V 50 Hz

MATERIALS

  • Stainless Flange

SURFACE FINISH

  • White

SERVICE LIFETIME (TA=25°C)

  • 50,000 hours L70 B10

Variations:

CRI 80 (>90 on Request)

Specifications
  • Lumen Output: 15,792lm - 18,246lm
  • Lifetime: 50,000hrs L70 B10
  • IP Rating: IP65
Our Products (3)
REXHP226LEDTCL
Description RX Hepa 2X2 6LED X Tridonic 4000LM 840 clear lens no driver
Wattage 168W
Lumen Output 15792lm
CCT 4000K
CRI 80
Service Lifetime 50,000 hours L70 B10
IP Rating IP65
Optic Symmetric
Driver/Dimming/Controls None
Power Factor 0.90
Connection Direct
Body colour/Options White
Dimensions (LxWxH) N/A x 595mm x 595mm
Weight 25.0kg
Mounting Recessed
Materials Stainless Flange
Photometry Download
View all specs Hide all specs
REXHP226LEDTT
Description RX Hepa 2X2 6LED X Tridonic 4000LM 840 triumph lens no driver
Wattage 168W
Lumen Output 15792lm
CCT 4000K
CRI 80
Service Lifetime 50,000 hours L70 B10
IP Rating IP65
Optic Symmetric
Driver/Dimming/Controls None
Power Factor 0.90
Connection Direct
Body colour/Options White
Dimensions (LxWxH) N/A x 595mm x 595mm
Weight 25.0kg
Mounting Recessed
Materials Stainless Flange
Photometry Download
View all specs Hide all specs
REXHP226LEDTY5
Description RX Hepa 2X2 6LED X Tridonic 4000LM 840 Y5 diffuser no driver
Wattage 168W
Lumen Output 15792lm
CCT 4000K
CRI 80
Service Lifetime 50,000 hours L70 B10
IP Rating IP65
Optic Symmetric
Driver/Dimming/Controls None
Power Factor 0.90
Connection Direct
Body colour/Options White
Dimensions (LxWxH) N/A x 595mm x 595mm
Weight 25.0kg
Mounting Recessed
Materials Stainless Flange
Photometry Download
View all specs Hide all specs
Product Code Description Wattage Lumen Output CCT CRI Service Lifetime IP Rating Optic Driver/Dimming/Controls Power Factor Connection Body colour/Options Dimensions (LxWxH) Weight Mounting Materials Photometry Product Kit
REXHP226LEDTCL RX Hepa 2X2 6LED X Tridonic 4000LM 840 clear lens no driver 168W 15792lm 4000K 80 50,000 hours L70 B10 IP65 Symmetric None 0.90 Direct White N/A x 595mm x 595mm 25.0kg Recessed Stainless Flange View Kit
REXHP226LEDTT RX Hepa 2X2 6LED X Tridonic 4000LM 840 triumph lens no driver 168W 15792lm 4000K 80 50,000 hours L70 B10 IP65 Symmetric None 0.90 Direct White N/A x 595mm x 595mm 25.0kg Recessed Stainless Flange View Kit
REXHP226LEDTY5 RX Hepa 2X2 6LED X Tridonic 4000LM 840 Y5 diffuser no driver 168W 15792lm 4000K 80 50,000 hours L70 B10 IP65 Symmetric None 0.90 Direct White N/A x 595mm x 595mm 25.0kg Recessed Stainless Flange View Kit
Accessories
Order Code Description
REXHP226LEDRET
RX HEPA RETRO KIT HEPA 2X2 6LED C/W DRIVER 4000LM 840
REXHP226LTRETUP
RX HEPA RETRO 2X2 6X TRIDONIC 4000LM REMOTE GEAR WITH UPS EM
REXHP226LEDRET
Description RX HEPA RETRO KIT HEPA 2X2 6LED C/W DRIVER 4000LM 840
REXHP226LTRETUP
Description RX HEPA RETRO 2X2 6X TRIDONIC 4000LM REMOTE GEAR WITH UPS EM
