RX Backlit LED Panel Tri Colour

RX Lighting

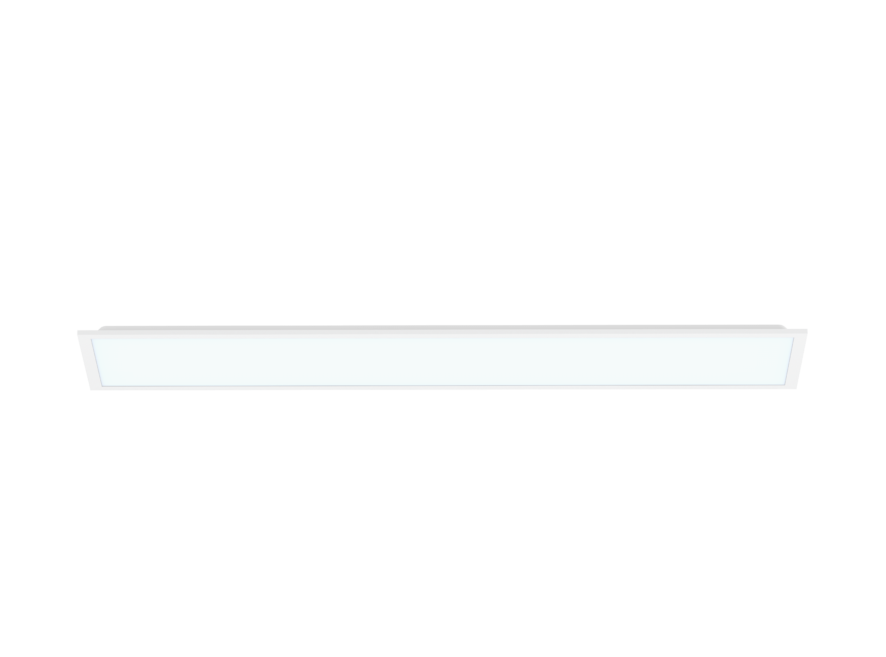

REXBLP123 2
REXBLP126
REXBLP126 2
REXBLP66
REXBLP66 2
REXBLP123
Backlit panel can be covered as it off ers excellent thermal management with an IC-4 rating
Downloads
Download all
Contractor product files (2)
Download ZIP - 660.81 kB
Specifier product files (6)
Download ZIP - 4.28 MB

APPLICATION

  • Office, retail, commercial and schools

SIZES ( L , W & H )

  • 595 x 595 x 30 mm
  • 1195 x 295 x 30 mm
  • 1195 x 595 x 30 mm

MOUNTING

  • Recessed

LIGHT SOURCE LED OPTICAL SYSTEM

  • 3000K 4000k & 5700K, non-dimmable
  • low glare, can achieve UGR<19
  • IC-4 rating
  • Flex & Plug

MATERIALS

  • Aluminum with PS diffuser

SERVICE LIFETIME (TA=25°C)

  • 50,000 hours L80 B10
Specifications
  • Lumen Output: 3,056lm - 6,583lm
  • Lifetime: 50,000hrs L80 B10
  • IP Rating: IP44
Applications
Make an enquiry
Our Products (6)

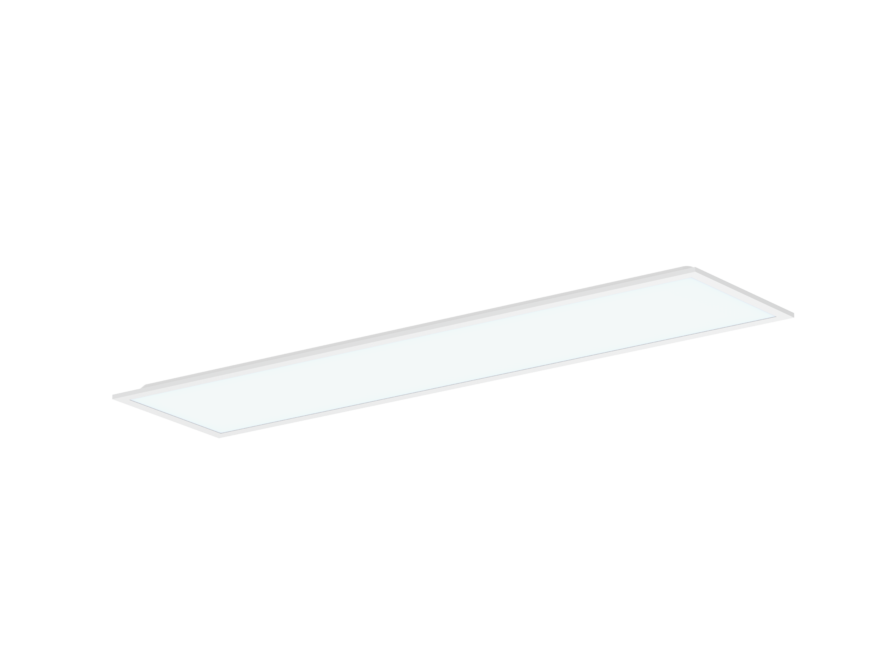

REXBLP123
Description RX Backlit Panel LED 1200 x 300 mm 36W 4K 3200lm non-dim white
Wattage 36W
Lumen Output 3200lm
CCT 4000K
CRI 80
Service Lifetime 50,000 hours L80 B10
IP Rating IP44
UGR UGR19
Beam Angle 90°
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.90
Connection Flex and plug
Body colour/Options White
Dimensions (LxWxH) 1195mm x 295mm x 30mm
Mounting Recessed
Materials Aluminum with PS diffuser
Photometry Download
View all specs Hide all specs
REXBLP123CCT
Description RX Backlit Panel LED 1200 x 300 mm 36W 85-92lm/w tri colour white
Wattage 36W
Lumen Output 3303lm
CCT 4000K
CRI 80
Service Lifetime 50,000 hours L80 B10
IP Rating IP44
UGR UGR19
Beam Angle 90°
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.90
Connection Flex and plug
Body colour/Options White
Dimensions (LxWxH) 1195mm x 295mm x 30mm
Mounting Recessed
Materials Aluminum with PS diffuser
View all specs Hide all specs

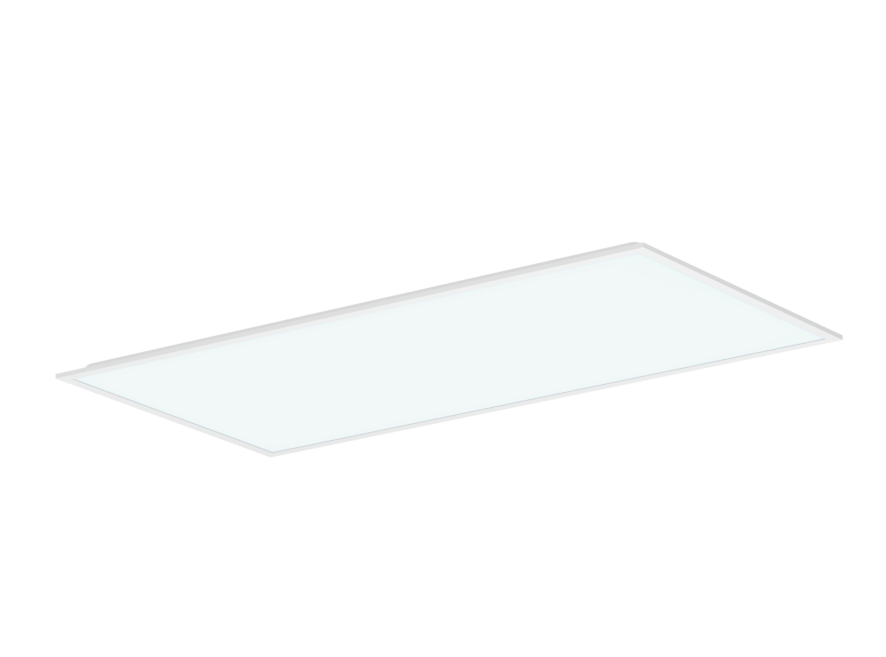

REXBLP126
Description RX Backlit Panel LED 1200 x 600 mm 60W 4K 6277lm non-dim white
Wattage 60W
Lumen Output 6277lm
CCT 4000K
CRI 80
Service Lifetime 50,000 hours L80 B10
IP Rating IP44
UGR UGR19
Beam Angle 90°
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.90
Connection Flex and plug
Body colour/Options White
Dimensions (LxWxH) 1195mm x 295mm x 30mm
Mounting Recessed
Materials Aluminum with PS diffuser
Photometry Download
View all specs Hide all specs
REXBLP126CCT
Description RX Backlit Panel LED 1200 x 600 mm 60W 99-110lm/w tri colour white
Wattage 60W
Lumen Output 6583lm
CCT 4000K
CRI 80
Service Lifetime 50,000 hours L80 B10
IP Rating IP44
UGR UGR19
Beam Angle 90°
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.90
Connection Flex and plug
Body colour/Options White
Dimensions (LxWxH) 1195mm x 595mm x 30mm
Mounting Recessed
Materials Aluminum with PS diffuser
View all specs Hide all specs

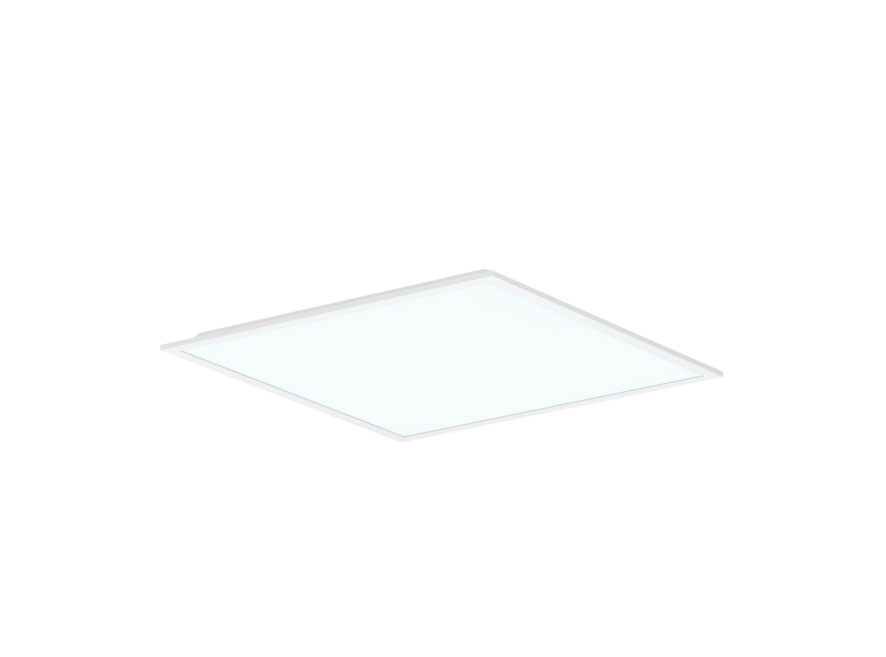

REXBLP66
Description RX Backlit Panel LED 600 x 600 mm 36W 4K 3453lm non-dim white
Wattage 36W
Lumen Output 3453lm
CCT 4000K
CRI 80
Service Lifetime 50,000 hours L80 B10
IP Rating IP44
UGR UGR19
Beam Angle 90°
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.90
Connection Flex and plug
Body colour/Options White
Dimensions (LxWxH) 595mm x 595mm x 30mm
Mounting Recessed
Materials Aluminum with PS diffuser
Photometry Download
View all specs Hide all specs
REXBLP66CCT
Description RX Backlit Panel LED 600 x 600 mm 36W 85-92lm/w tri colour white
Wattage 36W
Lumen Output 3311lm
CCT 4000K
CRI 80
Service Lifetime 50,000 hours L80 B10
IP Rating IP44
UGR UGR19
Beam Angle 90°
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.90
Connection Flex and plug
Body colour/Options White
Dimensions (LxWxH) 595mm x 595mm x 30mm
Mounting Recessed
Materials Aluminum with PS diffuser
View all specs Hide all specs
Product Code Description Wattage Lumen Output CCT CRI Service Lifetime IP Rating UGR Beam Angle Driver/Dimming/Controls Power Factor Connection Body colour/Options Dimensions (LxWxH) Mounting Materials Photometry Product Kit
REXBLP123 RX Backlit Panel LED 1200 x 300 mm 36W 4K 3200lm non-dim white 36W 3200lm 4000K 80 50,000 hours L80 B10 IP44 UGR19 90° Electronic fixed output 0.90 Flex and plug White 1195mm x 295mm x 30mm Recessed Aluminum with PS diffuser View Kit
REXBLP123CCT RX Backlit Panel LED 1200 x 300 mm 36W 85-92lm/w tri colour white 36W 3303lm 4000K 80 50,000 hours L80 B10 IP44 UGR19 90° Electronic fixed output 0.90 Flex and plug White 1195mm x 295mm x 30mm Recessed Aluminum with PS diffuser - View Kit
REXBLP126 RX Backlit Panel LED 1200 x 600 mm 60W 4K 6277lm non-dim white 60W 6277lm 4000K 80 50,000 hours L80 B10 IP44 UGR19 90° Electronic fixed output 0.90 Flex and plug White 1195mm x 295mm x 30mm Recessed Aluminum with PS diffuser View Kit
REXBLP126CCT RX Backlit Panel LED 1200 x 600 mm 60W 99-110lm/w tri colour white 60W 6583lm 4000K 80 50,000 hours L80 B10 IP44 UGR19 90° Electronic fixed output 0.90 Flex and plug White 1195mm x 595mm x 30mm Recessed Aluminum with PS diffuser - View Kit
REXBLP66 RX Backlit Panel LED 600 x 600 mm 36W 4K 3453lm non-dim white 36W 3453lm 4000K 80 50,000 hours L80 B10 IP44 UGR19 90° Electronic fixed output 0.90 Flex and plug White 595mm x 595mm x 30mm Recessed Aluminum with PS diffuser View Kit
REXBLP66CCT RX Backlit Panel LED 600 x 600 mm 36W 85-92lm/w tri colour white 36W 3311lm 4000K 80 50,000 hours L80 B10 IP44 UGR19 90° Electronic fixed output 0.90 Flex and plug White 595mm x 595mm x 30mm Recessed Aluminum with PS diffuser - View Kit
