B-Side Bollard

Lamp
Lamp031208Lfam27Ok
Lamp191108L200 11Ok
Lamp191108L200 02Ok
B-SIDE LED is a family of IP65 rated vandal resistant bollards suited to architectural applications
Download all
Contractor product files (0)
Download ZIP - 237.33 KB
Specifier product files (21)
Download ZIP - 14.18 MB

APPLICATION

  • Exterior applications for public and private areas

SIZES (L x W x H) AND WEIGHT

  • 160 x 160 x 135mm 1.5 kg
  • 160 x 160 x 450mm 2.8 kg
  • 160 x 160 x 850mm 4.2 kg

MOUNTING

  • Ground fixing

WIRING

  • Luminaire ready for mounting and installation. Built-in driver, 230 V AC

MATERIALS

  • Anti-corrosion electro-coating treatment. Texturised grey lacquered aluminium extrusion

SURFACE FINISH

  • Grey

SERVICE LIFETIME (TA=25°C)

  • 50,000 hours (L70 B10)
Read more
Specifications
  • Lumen Output: 115lm - 858lm
  • Lifetime: 50,000hrs L70 B10
  • Binning: 3 MacAdams
  • IP Rating: IP65
  • IK Rating: IK10
Applications
Brand Website
Make an enquiry
Our Products (5)
BS1DB1303840NG
Description B side LED 135 250 NW GR
Wattage 2W
Lumen Output 115lm
CCT 4000K
CRI 80
Service Lifetime 50,000 hours L70 B10
IP Rating IP65
Optic Asymmetric
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Texturised grey
Dimensions (LxWxH) N/A x 160mm x 135mm
Weight 1.5kg
Mounting Ground
Materials Texturised grey lacquered aluminium extrusion and translucent polycarbonate diffuser
Photometry Download
Dimension Diagram Download
View all specs Hide all specs
BS1DB4503840NG
Description B side LED 450 250 NW GR
Wattage 2W
Lumen Output 93lm
CCT 4000K
CRI 80
Service Lifetime 50,000 hours L70 B10
IP Rating IP65
Optic Asymmetric
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Texturised grey
Dimensions (LxWxH) N/A x 160mm x 450mm
Weight 2.8kg
Mounting Ground
Materials Texturised grey lacquered aluminium extrusion and translucent polycarbonate diffuser
Photometry Download
Dimension Diagram Download
View all specs Hide all specs
BS1DB4505840NG
Description B side LED 450 500 NW GR
Wattage 4W
Lumen Output 130lm
CCT 4000K
CRI 80
Service Lifetime 50,000 hours L70 B10
IP Rating IP65
Optic Asymmetric
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Texturised grey
Dimensions (LxWxH) N/A x 160mm x 450mm
Weight 2.5kg
Mounting Ground
Materials Texturised grey lacquered aluminium extrusion and translucent polycarbonate diffuser
Photometry Download
Dimension Diagram Download
View all specs Hide all specs
BS1DB8503840NG
Description B side LED 850 250 NW GR
Wattage 2W
Lumen Output 93lm
CCT 4000K
CRI 80
Service Lifetime 50,000 hours L70 B10
IP Rating IP65
Optic Asymmetric
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Texturised grey
Dimensions (LxWxH) N/A x 160mm x 850mm
Weight 4.2kg
Mounting Ground
Materials Texturised grey lacquered aluminium extrusion and translucent polycarbonate diffuser
Photometry Download
Dimension Diagram Download
View all specs Hide all specs
BS1DB8505840NG
Description B side LED 850 500 NW GR
Wattage 4W
Lumen Output 171lm
CCT 4000K
CRI 80
Service Lifetime 50,000 hours L70 B10
IP Rating IP65
Optic Asymmetric
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Texturised grey
Dimensions (LxWxH) N/A x 160mm x 850mm
Weight 4.5kg
Mounting Ground
Materials Texturised grey lacquered aluminium extrusion and translucent polycarbonate diffuser
Photometry Download
Dimension Diagram Download
View all specs Hide all specs
Product Code Description Wattage Lumen Output CCT CRI Service Lifetime IP Rating Optic Driver/Dimming/Controls Power Factor Connection Body colour/Options Dimensions (LxWxH) Weight Mounting Materials Photometry Dimension Diagram Product Kit
BS1DB1303840NG B side LED 135 250 NW GR 2W 115lm 4000K 80 50,000 hours L70 B10 IP65 Asymmetric Electronic fixed output 0.95 Direct Texturised grey N/A x 160mm x 135mm 1.5kg Ground Texturised grey lacquered aluminium extrusion and translucent polycarbonate diffuser View Kit
BS1DB4503840NG B side LED 450 250 NW GR 2W 93lm 4000K 80 50,000 hours L70 B10 IP65 Asymmetric Electronic fixed output 0.95 Direct Texturised grey N/A x 160mm x 450mm 2.8kg Ground Texturised grey lacquered aluminium extrusion and translucent polycarbonate diffuser View Kit
BS1DB4505840NG B side LED 450 500 NW GR 4W 130lm 4000K 80 50,000 hours L70 B10 IP65 Asymmetric Electronic fixed output 0.95 Direct Texturised grey N/A x 160mm x 450mm 2.5kg Ground Texturised grey lacquered aluminium extrusion and translucent polycarbonate diffuser View Kit
BS1DB8503840NG B side LED 850 250 NW GR 2W 93lm 4000K 80 50,000 hours L70 B10 IP65 Asymmetric Electronic fixed output 0.95 Direct Texturised grey N/A x 160mm x 850mm 4.2kg Ground Texturised grey lacquered aluminium extrusion and translucent polycarbonate diffuser View Kit
BS1DB8505840NG B side LED 850 500 NW GR 4W 171lm 4000K 80 50,000 hours L70 B10 IP65 Asymmetric Electronic fixed output 0.95 Direct Texturised grey N/A x 160mm x 850mm 4.5kg Ground Texturised grey lacquered aluminium extrusion and translucent polycarbonate diffuser View Kit
Show all products
Case Studies

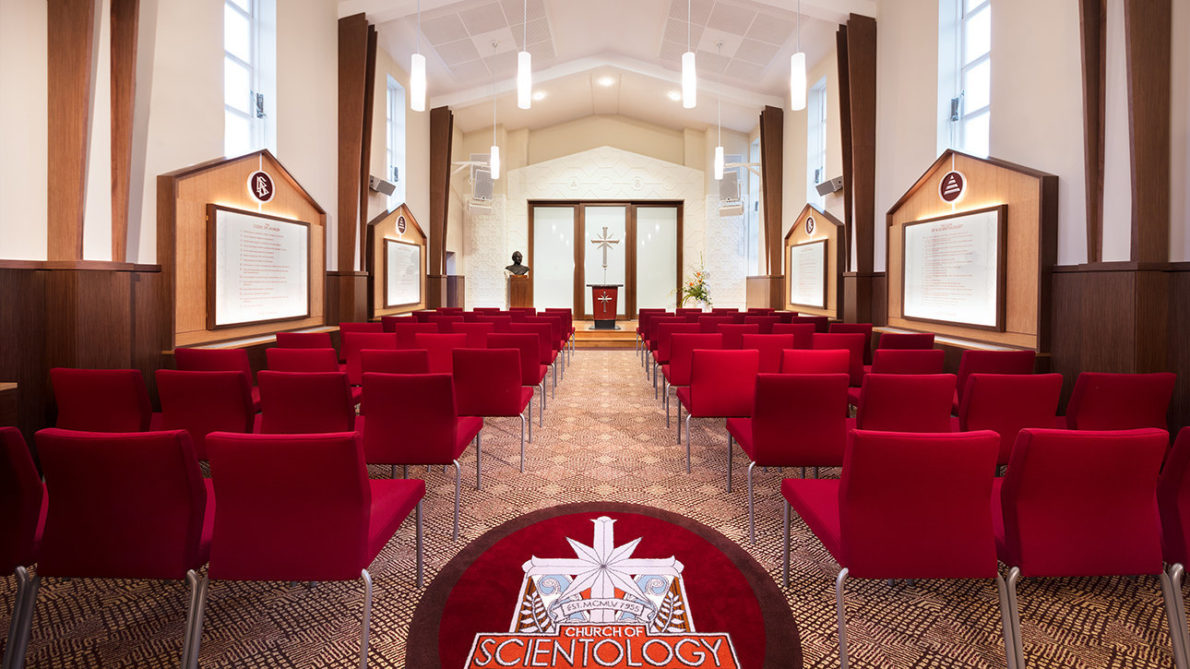

Church of Scientology
