RX Typhoon

RX Lighting
Typhoon
Typhoon-Grid

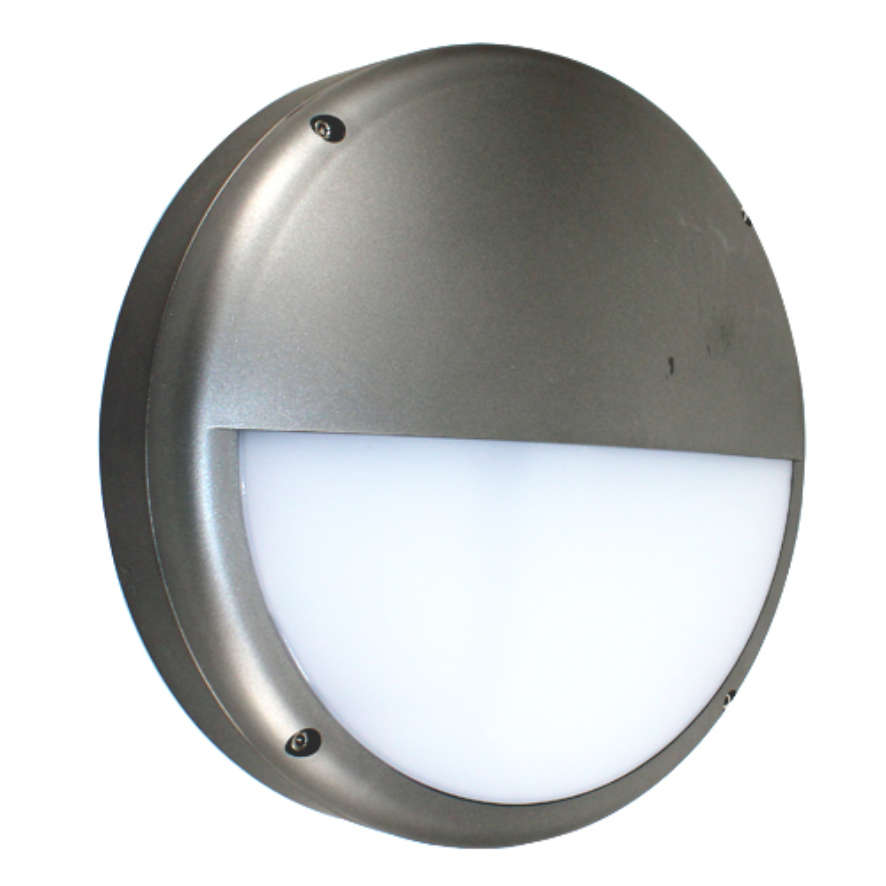

Typhoon-eyelid
The RX Typhoon is a versatile exterior wall or ceiling mount bulkhead. A microwave sensor version is also available

APPLICATION

  • Residential, hospitality, hotels, school.

SIZES ( W & H )

  • 350 mm x 85 mm

MOUNTING

  • wall & ceiling mount

WIRING

  • Tiltable LED tray for connection access
  • High specification driver with thermal & short circuit protection

MATERIALS

  • Polycarbonate with stainless steel fixing screws

SURFACE FINISH

  • Grey

SERVICE LIFETIME (TA=25°C)

  • 25,000 hours
Specifications
  • Lumen Output: 1,600lm - 1,600lm
  • Lifetime: 25,000hrs L70 B
  • IP Rating: IP65
  • IK Rating: IK08
Our Products (2)
REXBHR19W4KG
Description RX Typhoon Bulkhead round flush 19W 4K IP65 grey
Wattage 19W
Lumen Output 1600lm
CCT 4000K
CRI 80
Service Lifetime 25,000 hours L70 B
IP Rating IP65
Beam Angle 120°
Optic Symmetric
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.90
Connection Direct
Body colour/Options Grey
Dimensions (LxWxH) N/A x 350mm x 85mm
Mounting Wall, Ceiling Surface
Materials Polycarbonate with stainless steel fixing screws
Photometry Download
View all specs Hide all specs
REXBHR19W4KMG
Description RX Typhoon Bulkhead round flush 19W 4K m/wave sensor IP65 grey
Wattage 19W
Lumen Output 1600lm
CCT 4000K
CRI 80
Service Lifetime 25,000 hours L70 B
IP Rating IP65
Beam Angle 120°
Optic Symmetric
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.90
Connection Direct
Body colour/Options Grey
Dimensions (LxWxH) N/A x 350mm x 85mm
Mounting Wall, Ceiling Surface
Materials Polycarbonate with stainless steel fixing screws
Photometry Download
View all specs Hide all specs
Product Code Description Wattage Lumen Output CCT CRI Service Lifetime IP Rating Beam Angle Optic Driver/Dimming/Controls Power Factor Connection Body colour/Options Dimensions (LxWxH) Mounting Materials Photometry Product Kit
REXBHR19W4KG RX Typhoon Bulkhead round flush 19W 4K IP65 grey 19W 1600lm 4000K 80 25,000 hours L70 B IP65 120° Symmetric Electronic fixed output 0.90 Direct Grey N/A x 350mm x 85mm Wall, Ceiling Surface Polycarbonate with stainless steel fixing screws View Kit
REXBHR19W4KMG RX Typhoon Bulkhead round flush 19W 4K m/wave sensor IP65 grey 19W 1600lm 4000K 80 25,000 hours L70 B IP65 120° Symmetric Electronic fixed output 0.90 Direct Grey N/A x 350mm x 85mm Wall, Ceiling Surface Polycarbonate with stainless steel fixing screws View Kit
Accessories
Order Code Description
REXBHREYETRM
RX TYPHOON EYELID TRIM GREY
REXBHRGRLTRM
RX TYPHOON GRILLE TRIM GREY
REXBHREYETRM
Description RX TYPHOON EYELID TRIM GREY
REXBHRGRLTRM
Description RX TYPHOON GRILLE TRIM GREY
