RX Downlight - CCT

RX Lighting

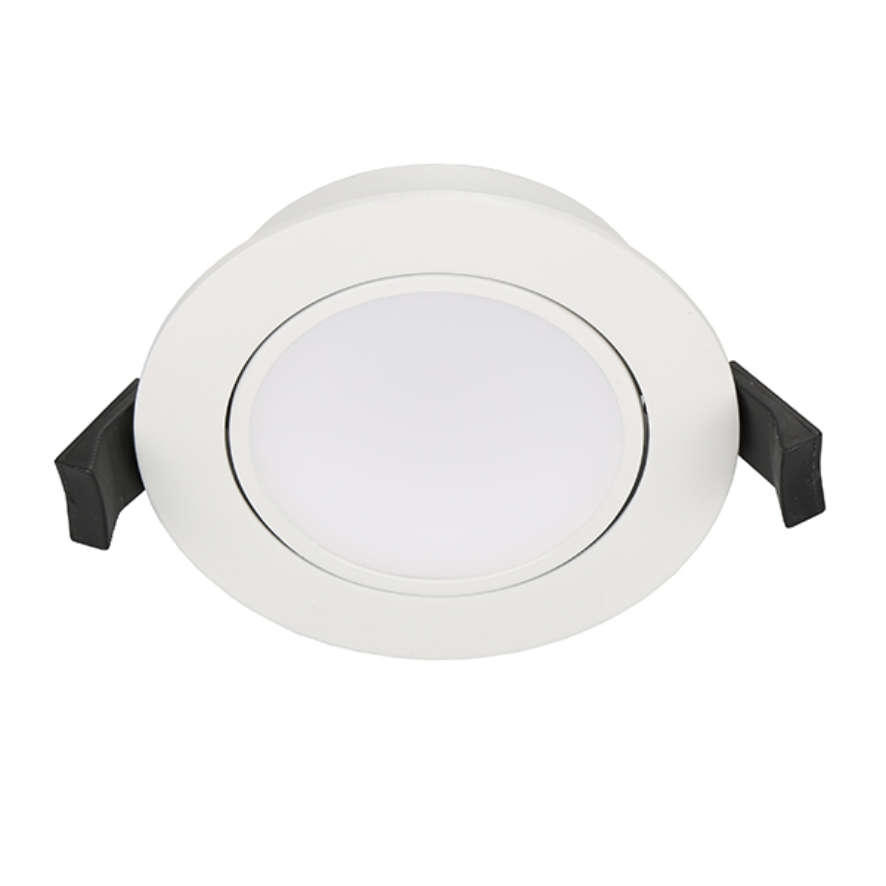

REXDL92 TLTCCT 2

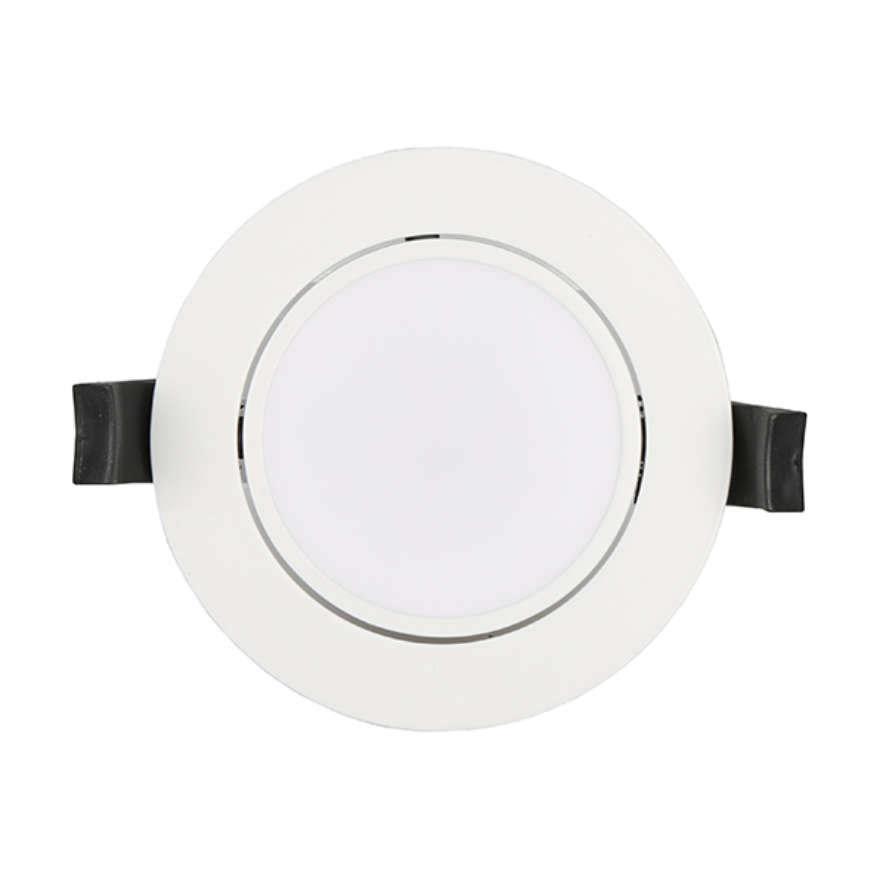

REXDL92 TLTCCT 3

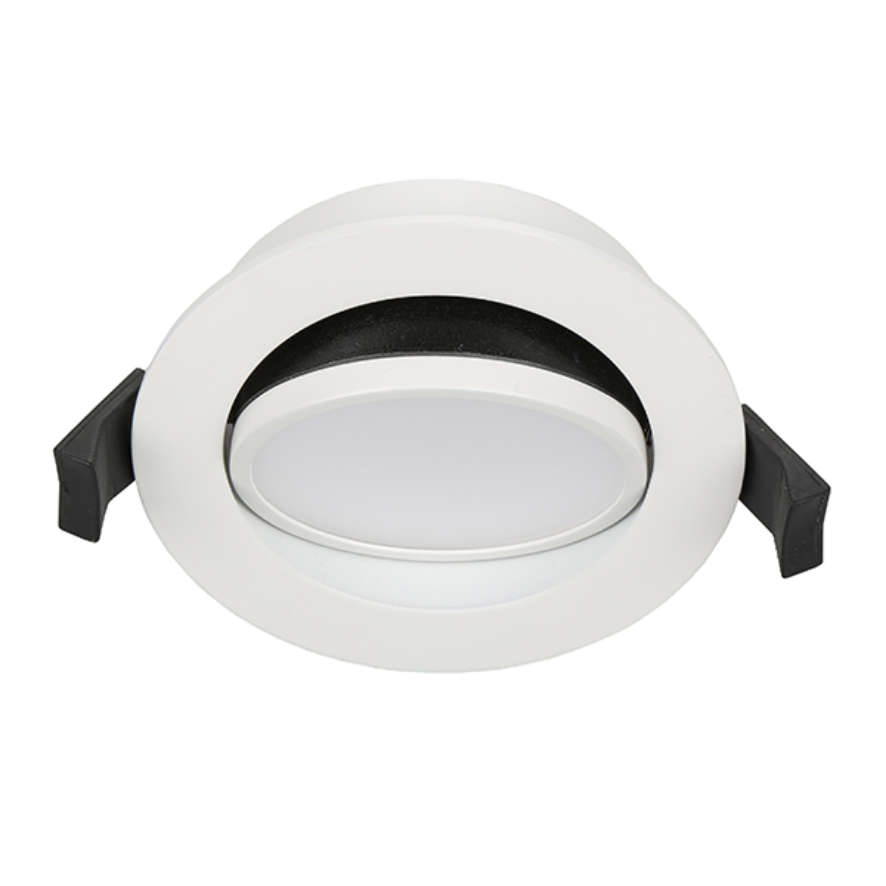

REXDL92 TLTCCT 1

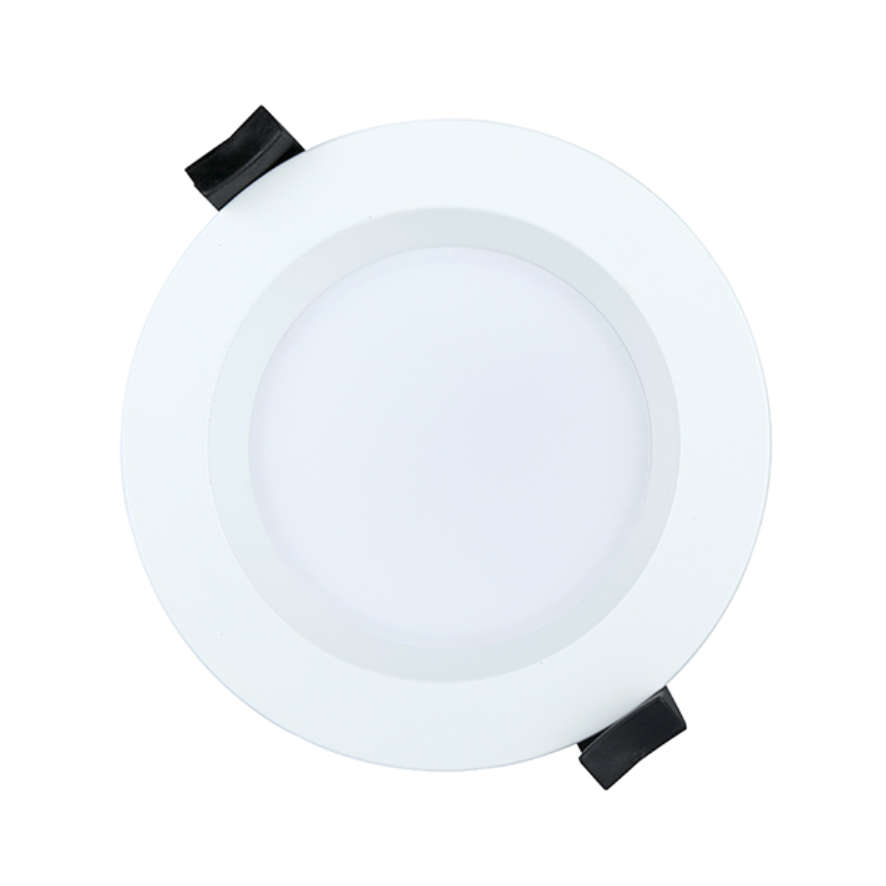

REXDL92 CCTWH REXDL100 CCTWH 2

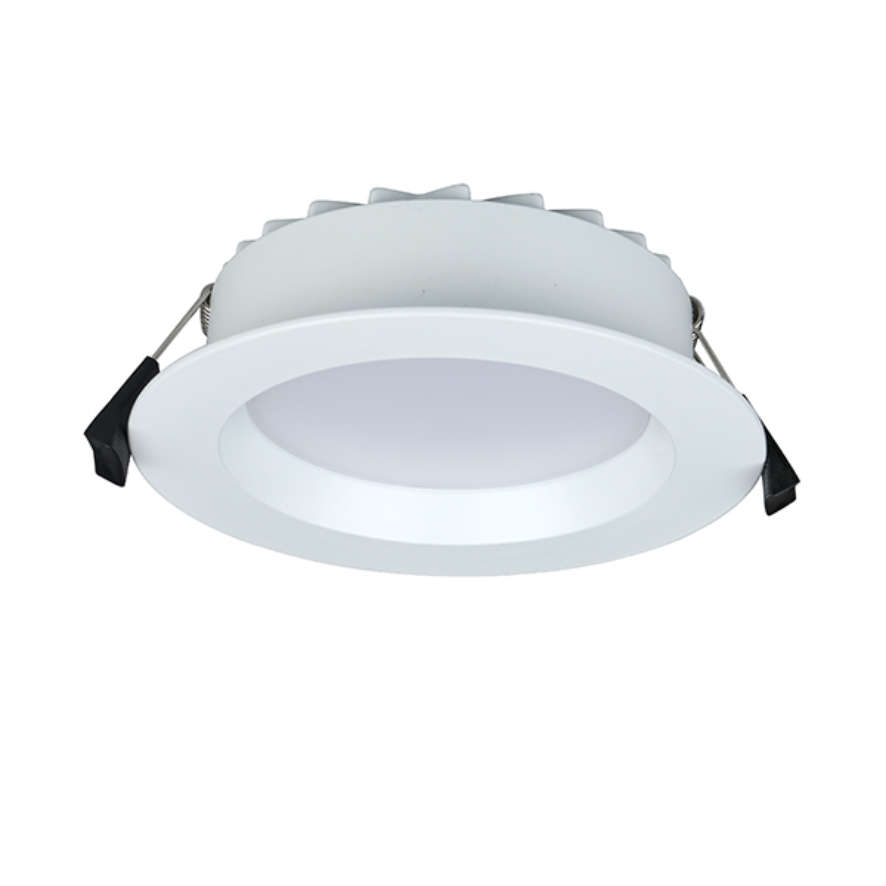

REXDL120 CCTWH 3

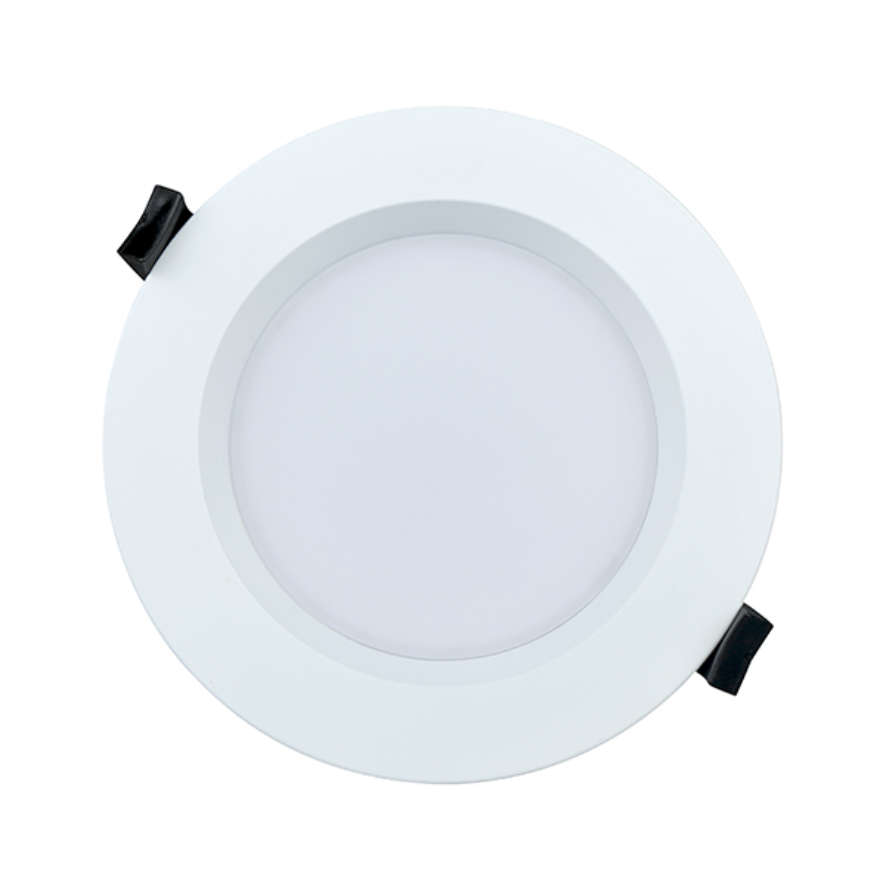

REXDL120 CCTWH 2
REXDL120 CCTWH 1

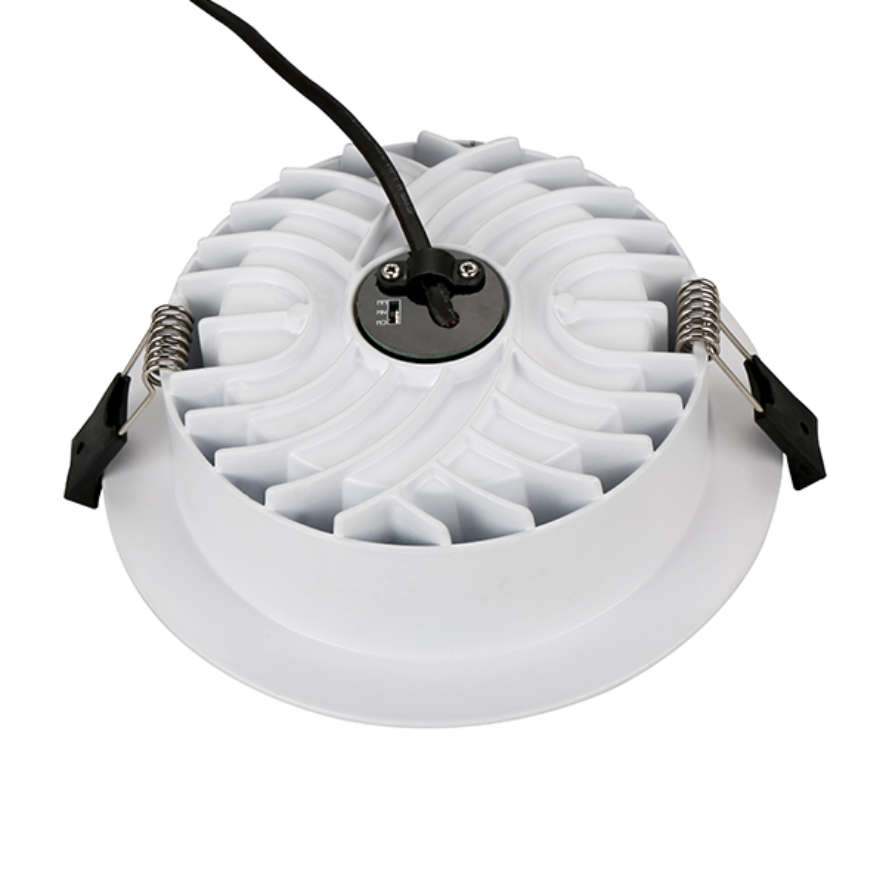

REXDL120 CCTWH 4
A residential budget buster with all the features and sizes you require.
Downloads
Download all
Contractor product files (2)
Download ZIP - 932.07 KB
Specifier product files (11)
Download ZIP - 984.24 KB

APPLICATION

  • Domestic, Commercial

SIZES

Fixed

  • Cutout -72mm
  • Overall -85mm
  • Depth - 39mm
  • Cutout -92mm
  • Overall -110mm
  • Depth - 38mm
  • Cutout -100mm
  • Overall -120mm
  • Depth - 45mm
  • Cutout -120mm
  • Overall -145mm
  • Depth - 45mm

Tilt

  • Cutout - 90mm
  • Overall - 104mm
  • Depth - 30mm

MOUNTING

  • Recessed

LIGHT SOURCE LED OPTICAL SYSTEM

  • 3000K / 4000K / 5700K (Tri-colour)

MATERIALS

  • Aluminium & PMMA

SERVICE LIFETIME (TA=25°C)

  • 40,000 hours

Available to purchase through the Ideal Electrical Site

Specifications
  • Lumen Output: 527lm - 1,480lm
  • Lifetime: 40,000hrs L70 B
  • IP Rating: IP20
  • IK Rating: IK06
Applications
Make an enquiry
Our Products (5)
REXDL100CCTWH
Description 13W dimmable WH trim IP54 100mm cut out
Wattage 13W
Lumen Output 1090lm
CCT 3000K 4000K 5700K
CRI 80
Service Lifetime 40,000 hours L70 B
IP Rating IP54
Beam Angle 90°
Optic Symmetric
Driver/Dimming/Controls Adjustable TRIAC
Power Factor 0.9
Connection Flex and plug
Body colour/Options White
Dimensions (LxWxH) 120mm x 120mm x 45mm
Cutout 100mm
Mounting Recessed
Materials Aluminum & PMMA
View all specs Hide all specs
REXDL120CCTWH
Description 15W dimmable WH trim IP54 120mm cut out
Wattage 15W
Lumen Output 1480lm
CCT 3000K 4000K 5700K
CRI 80
Service Lifetime 40,000 hours L70 B
IP Rating IP54
Beam Angle 90°
Optic Symmetric
Driver/Dimming/Controls Adjustable TRIAC
Power Factor 0.9
Connection Flex and plug
Body colour/Options White
Dimensions (LxWxH) 145mm x 145mm x 45mm
Cutout 120mm
Mounting Recessed
Materials Aluminum & PMMA
View all specs Hide all specs
REXDL72CCTWH
Description 7W dimmable WH trim IP54 72mm cut out
Wattage 7W
Lumen Output 527lm
CCT 3000K 4000K 5700K
CRI 80
Service Lifetime 40,000 hours L70 B
IP Rating IP44
Beam Angle 90°
Optic Symmetric
Driver/Dimming/Controls Adjustable TRIAC
Power Factor 0.9
Connection Flex and plug
Body colour/Options White
Dimensions (LxWxH) 85mm x 85mm x 39mm
Cutout 72mm
Mounting Recessed
Materials Aluminum & PMMA
View all specs Hide all specs
REXDL92CCTWH
Description 10W dimmable WH trim IP54 92mm cut out
Wattage 10W
Lumen Output 920lm
CCT 3000K 4000K 5700K
CRI 80
Service Lifetime 40,000 hours L70 B
IP Rating IP54
Beam Angle 90°
Optic Symmetric
Driver/Dimming/Controls Adjustable TRIAC
Power Factor 0.9
Connection Flex and plug
Body colour/Options White
Dimensions (LxWxH) 110mm x 110mm x 38mm
Cutout 92mm
Mounting Recessed
Materials Aluminum & PMMA
View all specs Hide all specs
REXDL92TLTCCT
Description Tilt 10W dimmable WH trim IP20 90mm cut out
Wattage 10W
Lumen Output 840lm
CCT 3000K 4000K 5700K
CRI 80
Service Lifetime 40,000 hours L70 B
IP Rating IP20
Beam Angle 90°
Optic Symmetric
Driver/Dimming/Controls Adjustable TRIAC
Power Factor 0.9
Connection Flex and plug
Body colour/Options White
Dimensions (LxWxH) 104mm x 104mm x 30mm
Cutout 90mm
Mounting Recessed
Materials Aluminum & PMMA
View all specs Hide all specs
Product Code Description Wattage Lumen Output CCT CRI Service Lifetime IP Rating Beam Angle Optic Driver/Dimming/Controls Power Factor Connection Body colour/Options Dimensions (LxWxH) Cutout Mounting Materials Product Kit
REXDL100CCTWH 13W dimmable WH trim IP54 100mm cut out 13W 1090lm 3000K 4000K 5700K 80 40,000 hours L70 B IP54 90° Symmetric Adjustable TRIAC 0.9 Flex and plug White 120mm x 120mm x 45mm 100mm Recessed Aluminum & PMMA View Kit
REXDL120CCTWH 15W dimmable WH trim IP54 120mm cut out 15W 1480lm 3000K 4000K 5700K 80 40,000 hours L70 B IP54 90° Symmetric Adjustable TRIAC 0.9 Flex and plug White 145mm x 145mm x 45mm 120mm Recessed Aluminum & PMMA View Kit
REXDL72CCTWH 7W dimmable WH trim IP54 72mm cut out 7W 527lm 3000K 4000K 5700K 80 40,000 hours L70 B IP44 90° Symmetric Adjustable TRIAC 0.9 Flex and plug White 85mm x 85mm x 39mm 72mm Recessed Aluminum & PMMA View Kit
REXDL92CCTWH 10W dimmable WH trim IP54 92mm cut out 10W 920lm 3000K 4000K 5700K 80 40,000 hours L70 B IP54 90° Symmetric Adjustable TRIAC 0.9 Flex and plug White 110mm x 110mm x 38mm 92mm Recessed Aluminum & PMMA View Kit
REXDL92TLTCCT Tilt 10W dimmable WH trim IP20 90mm cut out 10W 840lm 3000K 4000K 5700K 80 40,000 hours L70 B IP20 90° Symmetric Adjustable TRIAC 0.9 Flex and plug White 104mm x 104mm x 30mm 90mm Recessed Aluminum & PMMA View Kit
