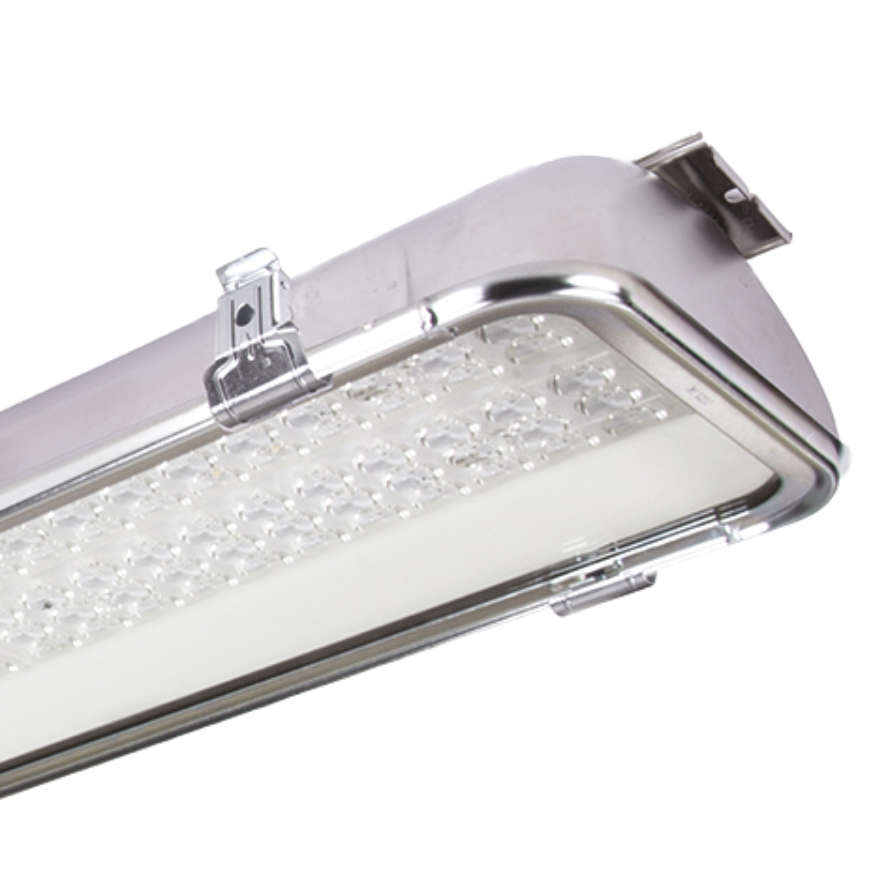

Beta 235 LED

3F Filippi
3 FFILIPPI 52877
The Beta 235 LED is suitable for installation in food-production/processing environments
Download all
Contractor product files (2)
Download ZIP - 1.64 MB
Specifier product files (196)
Download ZIP - 8.11 MB

APPLICATION

  • Product suitable for installation in food-production/processing environments (HACCP, IFS, BRC Standard)
  • Dry, dusty indoor environments, subject to occasional water splashes. Any environments except the ones where the luminaire materials are unsuitable

SIZES (L x A x H)

  • 655 x 235 x 140
  • 1265 x 235 x 135
  • 1565 x 235 x 107

MOUNTING

  • Ceiling / Suspended / Wall


LIGHT SOURCE LED OPTICAL SYSTEM

  • LED modules
  • CIE 13.3 Colour rendering index: CRI >80 (R9 <50%)
  • IES TM-30 Fidelity Index: Rf = 84 Rg = 95
  • CCT 4000K
  • Colour initial tolerance (MacAdam): SDCM 3.

ON REQUEST

  • Different colour rendering indices and colour temperatures
  • Different powers
  • Laminated glass
  • Wiring: emergency, CLO, twin-circuit
  • Linear LED modules, with special protection against aggressive chemically-volatile substances, for standard LED technology

WIRING

  • Quick connection in polycarbonate with M20x1,5 cable gland, to access the terminal block positioned on a removable runner

MATERIALS

  • Single-piece housing in pressed steel, powder-coated in white epoxy-polyester.
  • OR 304 stainless steel, pressed in one single piece.

SERVICE LIFETIME (TA=25°C)

  • 80,000 hours / L85 / B10

AMBIENT OPERATING TEMPERATURE

  • From -20°C to +45°C


Specifications
  • Lumen Output: 3,372lm - 14,606lm
  • Lifetime: 80,000hrs L85 B10
  • Binning: 3 MacAdams
  • IP Rating: IP65
  • IK Rating: IK10
Applications
Brand Website
Make an enquiry
Our Products (65)
52510
Description Beta 235 LED 752x55 CONC L1565
Wattage 116W
Lumen Output 16431lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1565mm x 235mm x 107mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52511
Description Beta 235 LED 751x60 CONC L1565
Wattage 67W
Lumen Output 9155lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1565mm x 235mm x 107mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52512
Description Beta 235 LED 762 x 55 CONC VT L1565
Wattage 116W
Lumen Output 16375lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1565mm x 235mm x 105mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52513
Description Beta 235 LED 761 x 60 CONC VT L1565
Wattage 67W
Lumen Output 9207lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1565mm x 235mm x 105mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52514
Description Beta 235 LED 762 x 55 CONC VS L1565
Wattage 116W
Lumen Output 14771lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1565mm x 235mm x 105mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52515
Description Beta 235 LED 761 x 60 CONC VS L1565
Wattage 67W
Lumen Output 8450lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1565mm x 235mm x 105mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52524
Description Beta 235 LED 752x45 CONC L1265
Wattage 94W
Lumen Output 12760lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1265mm x 235mm x 135mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52526
Description Beta 235 LED 762 x 45 CONC VT L1265
Wattage 94W
Lumen Output 13103lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1265mm x 235mm x 105mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52528
Description Beta 235 LED 762 x 45 CONC VS L1265
Wattage 94W
Lumen Output 11820lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1265mm x 235mm x 105mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52552
Description Beta 235 LED 752x55 MEDIO L1565
Wattage 116W
Lumen Output 16431lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1565mm x 235mm x 107mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52553
Description Beta 235 LED 751x60 MEDIO L1565
Wattage 67W
Lumen Output 9362lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1565mm x 235mm x 107mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52554
Description Beta 235 LED 762 x 55 MEDIO VT L1565
Wattage 116W
Lumen Output 16580lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1565mm x 235mm x 105mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52555
Description Beta 235 LED 761 x 60 MEDIO VT L1565
Wattage 67W
Lumen Output 9445lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1565mm x 235mm x 105mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52556
Description Beta 235 LED 762 x 55 MEDIO VS L1265
Wattage 116W
Lumen Output 14528lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1565mm x 235mm x 105mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52557
Description Beta 235 LED 761 x 60 MEDIO VS L1565
Wattage 67W
Lumen Output 8440lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1565mm x 235mm x 105mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52566
Description Beta 235 LED 752x45 MEDIO L1265
Wattage 94W
Lumen Output 13059lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1265mm x 235mm x 135mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52567
Description Beta 235 LED 751x50 MEDIO L1265
Wattage 116W
Lumen Output 7440lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1265mm x 235mm x 135mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52568
Description Beta 235 LED 762 x 45 MEDIO VT L1265
Wattage 94W
Lumen Output 13267lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1265mm x 235mm x 105mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52569
Description Beta 235 LED 761 x 50 MEDIO VT L1265
Wattage 56W
Lumen Output 7556lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1265mm x 235mm x 105mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52570
Description Beta 235 LED 762 x 45 MEDIO VS L1265
Wattage 94W
Lumen Output 11626lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1265mm x 235mm x 105mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52571
Description Beta 235 LED 761 x 50 MEDIO VS L1265
Wattage 56W
Lumen Output 6751lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1265mm x 235mm x 105mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52762
Description Beta 235 LED 752x55 AMPIO L1565
Wattage 116W
Lumen Output 16300lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1565mm x 235mm x 107mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52764
Description Beta 235 LED 752x55 IPERCONC L1565
Wattage 116W
Lumen Output 15293lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1565mm x 235mm x 107mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52765
Description Beta 235 LED 751x60 AMPIO L1565
Wattage 67W
Lumen Output 9259lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1567mm x 235mm x 107mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52767
Description Beta 235 LED 922x40 AMPIO L1265
Wattage 82W
Lumen Output 11407lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1265mm x 235mm x 135mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52769
Description Beta 235 LED 762 x 55 AMPIO VT L1565
Wattage 116W
Lumen Output 16375lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1565mm x 235mm x 105mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52771
Description Beta 235 LED 762 x 55 IPERCONC VT L1565
Wattage 116W
Lumen Output 15368lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1565mm x 235mm x 105mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52772
Description Beta 235 LED 761 x 60 AMPIO VT L1565
Wattage 67W
Lumen Output 9425lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1565mm x 235mm x 105mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52776
Description Beta 235 LED 762 x 55 AMPIO VS L1565
Wattage 116W
Lumen Output 14491lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1565mm x 235mm x 105mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52778
Description Beta 235 LED 762 x 55 CONC VS L1565
Wattage 116W
Lumen Output 13913lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1565mm x 235mm x 105mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52779
Description Beta 235 LED 761 x 60 AMPIO VS L1565
Wattage 67W
Lumen Output 8249lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1565mm x 235mm x 105mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52783
Description Beta 235 LED 922x50 AMPIO L1565
Wattage 101W
Lumen Output 14290lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1565mm x 235mm x 107mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52785
Description Beta 235 LED 922x50 IPERCONC L1565
Wattage 101W
Lumen Output 13409lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1565mm x 235mm x 107mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52786
Description Beta 235 LED 921x60 AMPIO L1565
Wattage 67W
Lumen Output 9103lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1565mm x 235mm x 107mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52790
Description Beta 235 LED 932x50 AMPIO VT L1565
Wattage 101W
Lumen Output 14606lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1565mm x 235mm x 105mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52792
Description Beta 235 LED 932x50 IPERCONC VT L1565
Wattage 101W
Lumen Output 13708lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1265mm x 235mm x 105mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52793
Description Beta 235 LED 931x60 AMPIO VT L1565
Wattage 67W
Lumen Output 9425lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1565mm x 235mm x 105mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52797
Description Beta 235 LED 932x50 AMPIO VS L1565
Wattage 101W
Lumen Output 12926lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1565mm x 235mm x 105mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52799
Description Beta 235 LED 932x50 IPERCONC VS L1565
Wattage 101W
Lumen Output 12410lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1565mm x 235mm x 105mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52800
Description Beta 235 LED 931x60 AMPIO VS L1565
Wattage 67W
Lumen Output 8429lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1565mm x 235mm x 105mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52846
Description Beta 235 LED 752x45 AMPIO L1265
Wattage 94W
Lumen Output 13014lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1265mm x 235mm x 135mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52848
Description Beta 235 LED 752x45 IPERCONC L1265
Wattage 94W
Lumen Output 11820lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1265mm x 235mm x 135mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52849
Description Beta 235 LED 751x50 AMPIO L1265
Wattage 56W
Lumen Output 7365lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1265mm x 235mm x 135mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52853
Description Beta 235 LED 762 x 45 AMPIO VT L1265
Wattage 94W
Lumen Output 13103lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1265mm x 235mm x 105mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52855
Description Beta 235 LED 762 x 45 IPERCONC VT L1265
Wattage 94W
Lumen Output 12297lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1265mm x 235mm x 105mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52856
Description Beta 235 LED 761 x 50 AMPIO VT L1265
Wattage 56W
Lumen Output 7539lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1265mm x 235mm x 105mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52860
Description Beta 235 LED 762 x 45 AMPIO VS L1265
Wattage 94W
Lumen Output 11596lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1265mm x 235mm x 105mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52862
Description Beta 235 LED 762 x 45 CONC VS L1265
Wattage 94W
Lumen Output 11133lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1265mm x 235mm x 105mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52863
Description Beta 235 LED 761 x 50 AMPIO VS L1265
Wattage 56W
Lumen Output 6743lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1265mm x 235mm x 105mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52869
Description Beta 235 LED 922x40 IPERCONC L1265
Wattage 82W
Lumen Output 10368lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1265mm x 235mm x 135mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52870
Description Beta 235 LED 921x50 AMPIO L1265
Wattage 56W
Lumen Output 7241lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1265mm x 235mm x 135mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52874
Description Beta 235 LED 932x40 AMPIO VT L1265
Wattage 82W
Lumen Output 11686lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1265mm x 235mm x 105mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52876
Description Beta 235 LED 932x40 IPERCONC VT L1265
Wattage 82W
Lumen Output 10967lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1265mm x 235mm x 105mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52877
Description Beta 235 LED 931x50 AMPIO VT L1265
Wattage 56W
Lumen Output 7539lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1265mm x 235mm x 105mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52881
Description Beta 235 LED 932x40 AMPIO VS L1265
Wattage 82W
Lumen Output 10342lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1265mm x 235mm x 105mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52883
Description Beta 235 LED 932x40 IPERCONC VS L1265
Wattage 101W
Lumen Output 12926lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1565mm x 235mm x 105mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52884
Description Beta 235 LED 931x50 AMPIO VS L1265
Wattage 56W
Lumen Output 6743lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 1265mm x 235mm x 105mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52930
Description Beta 235 LED 752x20 AMPIO L655
Wattage 42W
Lumen Output 6247lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 655mm x 235mm x 140mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52931
Description Beta 235 LED 751x25 AMPIO L655
Wattage 28W
Lumen Output 3683lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 655mm x 235mm x 140mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52936
Description Beta 235 LED 762 x 20 AMPIO VS L655
Wattage 42W
Lumen Output 5566lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 655mm x 235mm x 110mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52937
Description Beta 235 LED 761x25 AMPIO VS L655
Wattage 28W
Lumen Output 3372lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 655mm x 235mm x 110mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52939
Description Beta 235 LED 922x15 AMPIO L655
Wattage 35W
Lumen Output 4736lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 655mm x 235mm x 140mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52940
Description Beta 235 LED 922x15 AMPIO L655
Wattage 28W
Lumen Output 3620lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 655mm x 235mm x 140mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52945
Description Beta 235 LED 932x15 AMPIO VS L655
Wattage 35W
Lumen Output 4294lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 655mm x 235mm x 110mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
52946
Description Beta 235 LED 931x25 AMPIO VS L655
Wattage 28W
Lumen Output 3372lm
CCT 4000K
CRI 80
Service Lifetime 80,000 hours L85 B10
IP Rating IP65
Driver/Dimming/Controls Electronic fixed output
Power Factor 0.95
Connection Direct
Body colour/Options Powder-coated in white epoxy-polyester, UV stabilised
Dimensions (LxWxH) 655mm x 235mm x 110mm
Mounting Surface, suspended, wall
Materials Single-piece housing in pressed aluminium
Photometry Download
View all specs Hide all specs
Product Code Description Wattage Lumen Output CCT CRI Service Lifetime IP Rating Driver/Dimming/Controls Power Factor Connection Body colour/Options Dimensions (LxWxH) Mounting Materials Photometry Product Kit
52510 Beta 235 LED 752x55 CONC L1565 116W 16431lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1565mm x 235mm x 107mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52511 Beta 235 LED 751x60 CONC L1565 67W 9155lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1565mm x 235mm x 107mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52512 Beta 235 LED 762 x 55 CONC VT L1565 116W 16375lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1565mm x 235mm x 105mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52513 Beta 235 LED 761 x 60 CONC VT L1565 67W 9207lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1565mm x 235mm x 105mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52514 Beta 235 LED 762 x 55 CONC VS L1565 116W 14771lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1565mm x 235mm x 105mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52515 Beta 235 LED 761 x 60 CONC VS L1565 67W 8450lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1565mm x 235mm x 105mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52524 Beta 235 LED 752x45 CONC L1265 94W 12760lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1265mm x 235mm x 135mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52526 Beta 235 LED 762 x 45 CONC VT L1265 94W 13103lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1265mm x 235mm x 105mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52528 Beta 235 LED 762 x 45 CONC VS L1265 94W 11820lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1265mm x 235mm x 105mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52552 Beta 235 LED 752x55 MEDIO L1565 116W 16431lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1565mm x 235mm x 107mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52553 Beta 235 LED 751x60 MEDIO L1565 67W 9362lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1565mm x 235mm x 107mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52554 Beta 235 LED 762 x 55 MEDIO VT L1565 116W 16580lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1565mm x 235mm x 105mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52555 Beta 235 LED 761 x 60 MEDIO VT L1565 67W 9445lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1565mm x 235mm x 105mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52556 Beta 235 LED 762 x 55 MEDIO VS L1265 116W 14528lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1565mm x 235mm x 105mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52557 Beta 235 LED 761 x 60 MEDIO VS L1565 67W 8440lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1565mm x 235mm x 105mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52566 Beta 235 LED 752x45 MEDIO L1265 94W 13059lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1265mm x 235mm x 135mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52567 Beta 235 LED 751x50 MEDIO L1265 116W 7440lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1265mm x 235mm x 135mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52568 Beta 235 LED 762 x 45 MEDIO VT L1265 94W 13267lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1265mm x 235mm x 105mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52569 Beta 235 LED 761 x 50 MEDIO VT L1265 56W 7556lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1265mm x 235mm x 105mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52570 Beta 235 LED 762 x 45 MEDIO VS L1265 94W 11626lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1265mm x 235mm x 105mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52571 Beta 235 LED 761 x 50 MEDIO VS L1265 56W 6751lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1265mm x 235mm x 105mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52762 Beta 235 LED 752x55 AMPIO L1565 116W 16300lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1565mm x 235mm x 107mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52764 Beta 235 LED 752x55 IPERCONC L1565 116W 15293lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1565mm x 235mm x 107mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52765 Beta 235 LED 751x60 AMPIO L1565 67W 9259lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1567mm x 235mm x 107mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52767 Beta 235 LED 922x40 AMPIO L1265 82W 11407lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1265mm x 235mm x 135mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52769 Beta 235 LED 762 x 55 AMPIO VT L1565 116W 16375lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1565mm x 235mm x 105mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52771 Beta 235 LED 762 x 55 IPERCONC VT L1565 116W 15368lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1565mm x 235mm x 105mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52772 Beta 235 LED 761 x 60 AMPIO VT L1565 67W 9425lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1565mm x 235mm x 105mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52776 Beta 235 LED 762 x 55 AMPIO VS L1565 116W 14491lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1565mm x 235mm x 105mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52778 Beta 235 LED 762 x 55 CONC VS L1565 116W 13913lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1565mm x 235mm x 105mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52779 Beta 235 LED 761 x 60 AMPIO VS L1565 67W 8249lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1565mm x 235mm x 105mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52783 Beta 235 LED 922x50 AMPIO L1565 101W 14290lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1565mm x 235mm x 107mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52785 Beta 235 LED 922x50 IPERCONC L1565 101W 13409lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1565mm x 235mm x 107mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52786 Beta 235 LED 921x60 AMPIO L1565 67W 9103lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1565mm x 235mm x 107mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52790 Beta 235 LED 932x50 AMPIO VT L1565 101W 14606lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1565mm x 235mm x 105mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52792 Beta 235 LED 932x50 IPERCONC VT L1565 101W 13708lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1265mm x 235mm x 105mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52793 Beta 235 LED 931x60 AMPIO VT L1565 67W 9425lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1565mm x 235mm x 105mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52797 Beta 235 LED 932x50 AMPIO VS L1565 101W 12926lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1565mm x 235mm x 105mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52799 Beta 235 LED 932x50 IPERCONC VS L1565 101W 12410lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1565mm x 235mm x 105mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52800 Beta 235 LED 931x60 AMPIO VS L1565 67W 8429lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1565mm x 235mm x 105mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52846 Beta 235 LED 752x45 AMPIO L1265 94W 13014lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1265mm x 235mm x 135mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52848 Beta 235 LED 752x45 IPERCONC L1265 94W 11820lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1265mm x 235mm x 135mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52849 Beta 235 LED 751x50 AMPIO L1265 56W 7365lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1265mm x 235mm x 135mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52853 Beta 235 LED 762 x 45 AMPIO VT L1265 94W 13103lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1265mm x 235mm x 105mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52855 Beta 235 LED 762 x 45 IPERCONC VT L1265 94W 12297lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1265mm x 235mm x 105mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52856 Beta 235 LED 761 x 50 AMPIO VT L1265 56W 7539lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1265mm x 235mm x 105mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52860 Beta 235 LED 762 x 45 AMPIO VS L1265 94W 11596lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1265mm x 235mm x 105mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52862 Beta 235 LED 762 x 45 CONC VS L1265 94W 11133lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1265mm x 235mm x 105mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52863 Beta 235 LED 761 x 50 AMPIO VS L1265 56W 6743lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1265mm x 235mm x 105mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52869 Beta 235 LED 922x40 IPERCONC L1265 82W 10368lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1265mm x 235mm x 135mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52870 Beta 235 LED 921x50 AMPIO L1265 56W 7241lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1265mm x 235mm x 135mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52874 Beta 235 LED 932x40 AMPIO VT L1265 82W 11686lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1265mm x 235mm x 105mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52876 Beta 235 LED 932x40 IPERCONC VT L1265 82W 10967lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1265mm x 235mm x 105mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52877 Beta 235 LED 931x50 AMPIO VT L1265 56W 7539lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1265mm x 235mm x 105mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52881 Beta 235 LED 932x40 AMPIO VS L1265 82W 10342lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1265mm x 235mm x 105mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52883 Beta 235 LED 932x40 IPERCONC VS L1265 101W 12926lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1565mm x 235mm x 105mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52884 Beta 235 LED 931x50 AMPIO VS L1265 56W 6743lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 1265mm x 235mm x 105mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52930 Beta 235 LED 752x20 AMPIO L655 42W 6247lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 655mm x 235mm x 140mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52931 Beta 235 LED 751x25 AMPIO L655 28W 3683lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 655mm x 235mm x 140mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52936 Beta 235 LED 762 x 20 AMPIO VS L655 42W 5566lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 655mm x 235mm x 110mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52937 Beta 235 LED 761x25 AMPIO VS L655 28W 3372lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 655mm x 235mm x 110mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52939 Beta 235 LED 922x15 AMPIO L655 35W 4736lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 655mm x 235mm x 140mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52940 Beta 235 LED 922x15 AMPIO L655 28W 3620lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 655mm x 235mm x 140mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52945 Beta 235 LED 932x15 AMPIO VS L655 35W 4294lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 655mm x 235mm x 110mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
52946 Beta 235 LED 931x25 AMPIO VS L655 28W 3372lm 4000K 80 80,000 hours L85 B10 IP65 Electronic fixed output 0.95 Direct Powder-coated in white epoxy-polyester, UV stabilised 655mm x 235mm x 110mm Surface, suspended, wall Single-piece housing in pressed aluminium View Kit
Accessories
Order Code Description
A0187
Anti-condensation cable gland
A0521
Reducing sealing ring diam.8mm
A0653
Pair of fixing carab. for chain instal.
A0457
Wireguard 280x1330 3F Linda/3F Beta
A0458
Wireguard 280x1630 3F Linda/3F Beta
A0471
Security screws - Beta 235 (100 pcs)
A0324
Pair fixed brack. for ceiling Beta 235
A0835
Pair brack.+hooks for wall
A0836
Pair of galv.hooks for susp.- Beta 235
A0837
Pair of stain.steel hooks susp.-Beta 235
A0838
Pair of S-hooks for chain - Beta 235
A0325
Mounting kit on busbar - Beta 235
A0187
Description Anti-condensation cable gland
A0521
Description Reducing sealing ring diam.8mm
A0653
Description Pair of fixing carab. for chain instal.
A0457
Description Wireguard 280x1330 3F Linda/3F Beta
A0458
Description Wireguard 280x1630 3F Linda/3F Beta
A0471
Description Security screws - Beta 235 (100 pcs)
A0324
Description Pair fixed brack. for ceiling Beta 235
A0835
Description Pair brack.+hooks for wall
A0836
Description Pair of galv.hooks for susp.- Beta 235
A0837
Description Pair of stain.steel hooks susp.-Beta 235
A0838
Description Pair of S-hooks for chain - Beta 235
A0325
Description Mounting kit on busbar - Beta 235
